Product Details
Product Description
Product Description
lanyingmachine

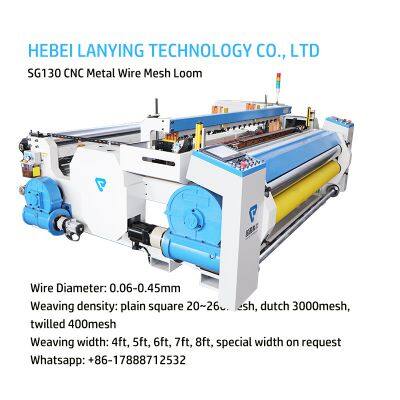

SG130 Series Weaving Machine
SG130 Series CNC metal wire mesh weaving machines are designed to weave medium thickness wire mesh. The application is widely and precision is high, noise is low, weave patterns is diversity, maintenance is easy.
SG130 Standard series is suitable for normal fabric weaving, SG130S is specially designed to weave medium heavy mesh with big wire diameter such as 60*0.19mm, 20*0.4mm, etc, the weaving speed could reach up to 60-100RPM (depends on weaving width and specs).
Wire diameter
| 0.06-0.45mm
|
Weaving density
| Plain weave square hole 20-260mesh/inch; twilled weave up to 400mesh/inch twilled weave upto 600mesh/inch
|
Nominal width (special width on request)
| 1.3m
| 1.6m
| 2m
| 2.5m |
Speed(the actual speed depends on the weaving specs and width)
| 80-120RPM
| 80-100RPM
| 65-80RPM
| 60-80RPM |
Total power
| 10.5KW
| 10.5KW
| 12KW
| 12KW |
Size (L*W*H) mm
| 2750X3300X1500
| 2750X3600X1500
| 2750X4000X1500
| 2750X4500X1500 |
Weight
| 4500KG
| 5500KG
| 6000KG
| 6500KG |
Basic tension
| 20000 N/m
|
Product Series
| SG100 Series
| SG130 Series
| SG160 Series
| SG180 Series
|
Standard weaving width
(Special width on request)
| 1300mm
1600mm
2000mm
| 1300mm
1600mm
2000mm
2500mm
3000mm
| 1300mm
1600mm
2000mm
2500mm
3000mm
| 1300mm
1600mm
2000mm
2500mm
3000mm
4000mm
|
Wire diameter range
| 0.016-0.3mm
| 0.06-0.45mm
| 0.1-0.7mm
| 0.2-2.1mm
|
Plain weave square hole (mesh/inch)
| 40-400
| 20-260
| 10-100
| 6-60
|
Twill weave (mesh/inch)
| ≤600
| ≤400
| ≤350
| ≤260
|
Wire material
| Stainless steel, iron, copper, aluminum, platinum, nickel, polyester
| Stainless steel, iron, copper, aluminum,
platinum, alloy, nickel, polyester
| Stainless steel, iron, copper, aluminum,
platinum,alloy, nickel, polyester
| Stainless steel, iron,copper,
aluminum,
alloy, nickel, polyester
|
Speed
(the actual speed depends on the weaving width and specs)
| 100 rpm
（max 120rpm）
| 100 rpm
（max120rpm）
| 50-70 rpm
| 35-50 rpm
|
Basic tension
| 15000 N/m
| 20000 N/m
| 40000 N/m
| 60000 N/m
|
SG130/250-1JD Standard metal wire mesh weaving machineSG130 Series CNC metal wire mesh weaving machines are designed to weave medium thickness wire mesh. The application is widely and precision is high, noise is low, weave patterns is diversity, maintenance is easy.
SG130/300-1JD Standard metal wire mesh weaving machineSG130/220-1JD Standard metal wire mesh weaving machine
SG130/220-1JD Standard metal wire mesh weaving machineSG130 Series CNC metal wire mesh weaving machines are designed to weave medium thickness wire mesh.
SG130/210-1JD Standard metal wire mesh weaving machineSG130 Series CNC metal wire mesh weaving machines are designed to weave medium thickness wire mesh.
SG130/200-1JD Standard metal wire mesh weaving machineSG130 Series CNC metal wire mesh weaving machines are designed to weave medium thickness wire mesh.
SG130/160-1JD Standard metal wire mesh weaving machineSG130 Series CNC metal wire mesh weaving machines are designed to weave medium thickness wire mesh.
SG130/130-1JD Standard metal wire mesh weaving machineSG130 Series CNC metal wire mesh weaving machines are designed to weave medium thickness wire mesh.
>>
