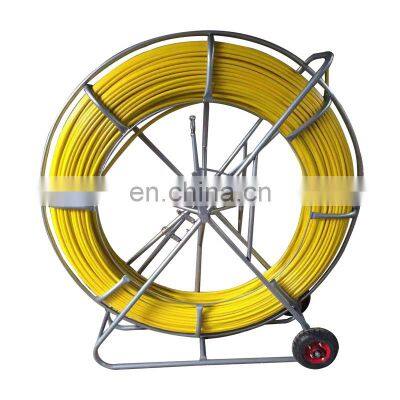

Underground Cable Pulling Tools powered duct rod pusher /cable pulling rod
Specification
| Rod Diameter (mm)
| Φ4,Φ4.5,Φ5,Φ6,Φ8,Φ10,Φ11,Φ12,Φ13,Φ14,Φ15,Φ16,Φ17,Φ18
|
| Rod Length (m)
| 10-500m
|
| Frame Spec.(mm)
| 1300x450x1330,1200x420x1220,980x350x1000,680x240x700
|
| Wheel Diameter(mm)
| 300mm
|
| Wall thickness of Metal Frame
| 2.2mm
|
| Color
| Red, green,blue, yellow, red, white etc accept customized
|
Material
| Rod Inner
| Extruded by fiber glass and high strength resin at high temperature
|
| Rod Outer
| High Density polyethylene coating
|
| Iron Frame
| Steel with high-temperature sprayed plastic or Spray coating
|
| Wheel
| rubber
|
| Brake
| Yes
|
| Drawing head
| copper
|
Physical Characters
| Density
| 55g/m
|
| Working temperature
| -40°C to +80°C
|
| Breaking tension
| 100kg
|
| Bending Radius
| 295mm
|
| Technology
| Pultrusion
|
Packaging
| Inside
| Plastic woven strip wind around the frame
|
| Outside
| Wooden pallet and Wooden box
|
Detailed Images
Our factory details
Accessories
Application
1.Used to install pulling ropes and winch ropes into ducts,ready for cable pulling operations.
2.Fiberglass rod is lightweight and flexible.
3.Dia of duct rod:4.5mm;6mm;8mm;9mm;10mm;11mm;12mm;13mm;14mm;15mm;16mm
4.Length of pulling rod:100m/ 150m/ 200m;
Packing & Delivery
Related Products
FAQ & Contacts
Q: Are you trading company or manufacturer ?
A: We are manufacturer with our own factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge. And the freight cost will on the buyer's side.
Q: What is your terms of payment ?
A: Payment<=USD1000, 100% in advance. Payment>=USD1000, 30% T/T in advance ,balance before shipment.
If you have other questions, please feel free to contact us as freely.
>>
