| US$14,600.00 | 1 Piece (MOQ) |
| item | value |
| Condition | New |
| Type | Horizontal |
| Year | 2023 |
| Max. Length of Workpiece (mm) | 1000/1500/3000 |
| Max. Spindle Speed (r.p.m) | 550r.p.m |
| Machining Capacity | Heavy Duty |
| Spindle Bore(mm) | 225 |
| Width of bed (mm) | 550mm |
| Spindle Motor Power(kW) | 11 |
| No. of Spindles | Single |
| Number of Axes | 2 |
| Travel (X Axis)(mm) | 420mm |
| Travel (Z Axis)(mm) | 2850mm |
| Positioning Accuracy (mm) | ±0.003 |
| Repeatability (X/Y/Z) (mm) | ±0.003 |
| Place of Origin | China |
| Dimension(L*W*H) | 5300*1880*1850 |
| Model Number | QK1322 |
| Voltage | 220v |
| CNC Control System | Siemens |
| Tool Post Stations | 4 |
| Weight (KG) | 6.2 |
| Warranty | 1 Year |
| Applicable Industries | Manufacturing Plant |
| Showroom Location | None |
| Marketing Type | Ordinary Product |
| Machinery Test Report | Provided |
| Video outgoing-inspection | NO |
| Warranty of core components | 1 Year |
| Core Components | PLC |

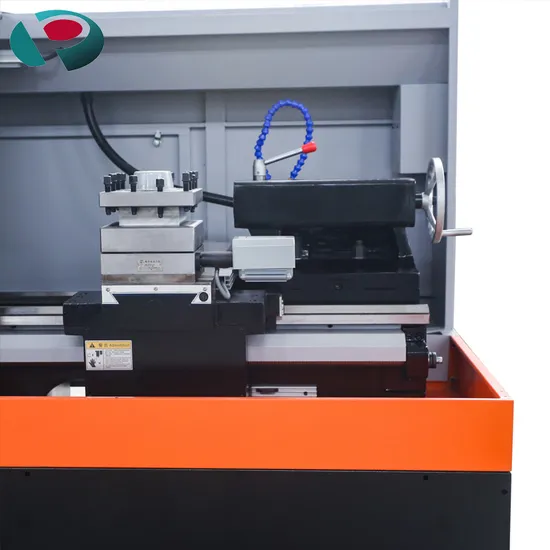

| Machine Type | pipe Threading Lathe |
| Model | QK1322 |
| Control system | SIEMENS GSK FANUC (optional) |
