Low Price Sumore Metal China Automatic Flat Processing Small Horizontal Turning CNC Lathe

Product Description

Product Description
Factory Sumore CE Approved China High Quality Metal Processing Automatic CNC Turning Lathe CNC Machine Price Ck6140 Ck6150 Ck6166 CK6180 * 1/1.5/2/3 Meter CNC Lathe Machine with or Without Control System Bare Frame Body Lathe Ball Bearing Hongda Automatic Turret SP2119

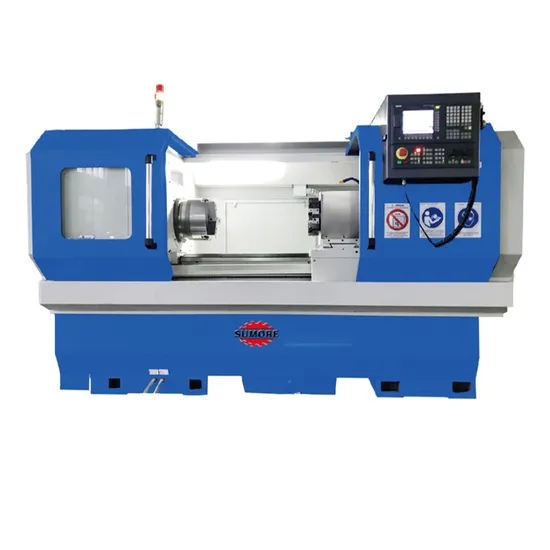

SP2119 Small CNC Horizontal Turning Lathe Machine for Sale cnc lathe machine is new machine and we won't provide used cnc lathe machine, this light industrial cnc lathe machine is for job work, it's quite competitive in the market. It is made in China but has similar quality as made in Taiwan cnc lathe, but it has the same quality as made in German cnc lathe machine. Features / advantage of cnc lathe machine is as below:
1. Engineers from high grade castings.
2. The lathe bed is made of heavy casting. It has gone through at least twice aging quality tests and ultrasonic frequency quenching.
3. Induction hardened bed.
4. The cutting tools carrier is equipped with 4-station, or 6-stations tool holder.
5. All machines have to pass the checklist of the machine precision before shipment
6.The machine can process precisely internal or external diameter, face, taper, arc and threading with high efficiency
7. Electric turret and gang-tools turret can be both installed.
8. Fully enclosed protective cover.
Product Parameters

odel	SP2119
Swing over Bed	500 / 6600 mm
Distance Between Centers	750 / 1,000 / 1,500 / 2,000 / 3,000 mm
Travel Speed of X Axis	5,000 mm/min
Travel Speed of Z Axis	10,000 mm/min
Spindle Bore	82 /105 mm
Spindle Taper	1:20
Spindle Speed	150 - 2,500 rpm
Tailstock Taper	MT5
Tailstock Quill Diameter	75 mm
Tailstock Quill Travel	150 mm
Tool Post Position	4 (6,8,10,12 optional)
Tool Size	25 x 25 mm
Tool Restoration Accuracy	0.001 mm
Motor Power	7,500 w or 11,000w
Voltage and Frequency	Customerized
Overall Dimensions (LxWxH)	2,570 / 2,970 x 1,560 x 2,110 mm
Net Weight	3,200 kg
Gross Weight	3,500 kg
Model	SP2119
Swing over Bed	500 mm/660mm/800mm
Distance Between Centers	750 / 1,000 / 1,500 / 2,000 / 3,000 mm
Travel Speed of X Axis	5,000 mm/min
Travel Speed of Z Axis	10,000 mm/min
Spindle Bore	82 mm/105mm
Spindle Taper	D-8
Spindle Speed	150 - 1,600 rpm
Tailstock Taper	MT5
Tailstock Quill Diameter	75 mm
Tailstock Quill Travel	150 mm
Tool Post Position	4 (6,8,10,12 optional)
Tool Size	25 x 25 mm
Tool Restoration Accuracy	0.001 mm
Travel Speed on X Axis	5,000 mm/min
Travel Speed on Z Axis	10,000 mm/min
Motor Power	7,500 w
Voltage and Frequency	Customerized
Overall Dimensions (LxWxH)	2,570 / 2,970 x 1,560 x 2,110 mm
Net Weight	3,200 kg
Gross Weight	3,500 kg

Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE, GS ,Rohs ,,UL ,etc . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!

---
