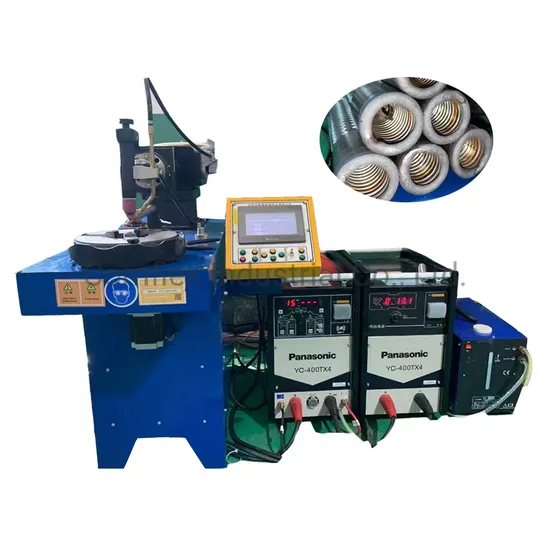

Automatic Pipe Flange Joint Welding Machine for Welding Pipe/Tube with Cylindrical Tank Body or End Dish~

Product Description

Automatic Pipe Flange Joint Welding Machine For Welding Pipe/tube With Cylindrical Tank Body Or End Dish~
Application:
1. Suitable for pipe, pipe elbow, pipe tee, pipe high neck butt joint; pipe flange, elbow flange corner joint 2. Suitable for welding of carbon steel, low alloy steel, stainless steel, copper and other materials 3. Equipped with argon arc welding equipment

Specification:
1. One-piece design of the whole machine, compact structure, mature and reliable; three-jaw self-centering lathe chuck rotates and locates accurately 2. Three-dimensional welding operating arm + full-angle positioner + welding gun angle adjustment mechanism, which ensures the multi-position and multi-angle conversion of the welding gun
3. The control system adopts large-screen touch screen man-machine interface, which is convenient for programming
4. The storage capacity of welding process is 30 sets, and the corresponding welding process can be directly called according to the specifications of the weldment and according to the number.
5. Standard arc length tracking system (AVC) and welding gun yaw system (OSC)
6. Numerical control automatic wire feeder, with automatic anti-drawing function and pulsating wire feeding function, high wire feeding precision
7. Forced circulating water cooling system to ensure long-term reliable operation of the whole machine. 8. One-button operation, which automatically completes the entire welding process; you can also intervene in real-time welding parameters as needed

Clamping outer diameter	Φ20~Φ400
Tube length	Not more than 600mm
Pipe wall thickness	Not less than 1mm
Welding power	Otai WSM400/Panasonic YC-400TX
Power supply	Welder 30KW/380V/50Hz
Rotation radius of elbow	Not more than 300mm
Center diameter of positioner	140mm
Deflection angle	0~360°
Cross arm stroke (X/Y/Z)	800mm×400mm×30mm (manual)
Welding gun displacement angle	0~90°
Overall size	1300mm×2000mm×1650mm
Total Weight	800kg
Maximum load	240kg
Controller	Color touch screen controller
Storage capacity	30 sets of welding processes
Number of welding layers	Automatic layering
Welding Torch Oscillator	Swing range 0~20mm; swing speed 0~20mm/s; stay time on the groove side 0~5s
Arc length tracker	Tracking range 0~40.0mm; tracking speed 0~6mm/s; arc length tracking accuracy 0.2mm
Argon arc welding wire feeder	Adapt to wire diameter 1.0mm

Details Images

Our Company
Comflex Industrial Co., Ltd. is professional manufacturer of all types of metal flexible metal hose and hose making machinery, such as corrugated metal hose, square lock and interlock hose/ conduit and machiens with more than 35 years of experience. The hoses are widely used in many industries: gas hose, water hose and wire & cable protection circuit, ect. Our products have been exported to many countries, such as Indonesia, Vietnam, UK, Australia, Canada, USA, Russia, Mexico, Poland, Japan etc...
Our Clients:
FAQ
Q: Why choose us for hose fitting/flange welding machine?
A: We are most professional manufacturer of hose making machine with more than 25 years of experience
Q: What size can you make?
A: All the sizes from DN20 up to DN400 can be made on different machines
Q: How many different types of machine can you make?
A: Hydraulic metal hose forming machine
a:DN16-65mm b:DN25-DN100mm c:DN32-150mm d:DN50-300mm e:DN80-400mm
B: Mechanical hose making machine
DN8-50mm
C: PU/ Elastomer Metal Hose Making Machine
a:DN12-100 b: DN50-150 c:DN12-65
We need to know the following information to quote you correct machinery:
1. Size range you want to weld
2.The application of the hose you need, for instance, natural gas hose, water hose, air-conditional hose, etc..
3.Wall thickness

---
