Product Introduction

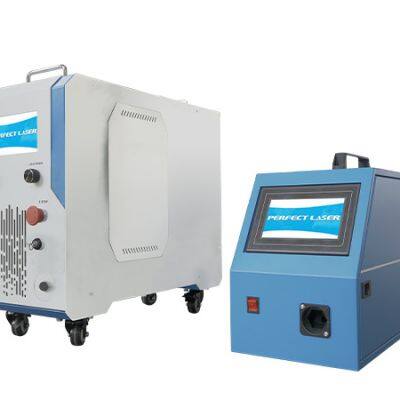

The small portable handheld laser welder conducts 360 ° all-round welding on metal work-pieces through fiber optic transmission, with uniform and beautiful welds and exceptionally firm welding.
It has a small volume, occupies a small area, is easy to move, operates conveniently and saves labor costs, and can also be operated by inexperienced workers. Adopting air-cooled heat dissipation, it has good heat dissipation performance and can achieve long-term stable operation and welding.
The air-cooled handheld handheld laser welder adopts a four in one control system, which allows for flexible switching of welding, cleaning, welding seam cleaning, and cutting. Multiple safety alarms are set, and the operation is simple and flexible, fully meeting the needs of different customers with different usage requirements.
Product Features
1.The handheld laser welder has professional laser welding system, with comfortable graphics, simple and clear operation, integrating welding, cleaning, welding seam cleaning, and cutting functions into one;
2. Flexible and portable, weighing only 45 kilograms. Mobile operation, electric vehicles can be used. The armored cable of the welding gun can be dragged, making the movement operation more convenient;
3. The handheld laser welder adopts intelligent touch screen and intelligent operating system, it only requires half an hour of training to master welding operations;
4. The weight of the welding gun is 0.7kg, and the maximum welding thickness is 3mm. Lightweight and portable, single person controllable, truly achieving one person portable handheld laser welding machine;
5.The handheld laser welder is suitable for metal welding of 0.5mm-3mm,such as overlap welding, spot welding, external corner welding, internal corner welding, suitable for various welding processes;
6. Equipped with a wire feeder, welding wires can be selected according to the size of the weld seam. The weld seam is beautiful and the welding speed is fast.
Application
1.Application materials
The handheld laser welding machine is widely used Stainless steel, die steel, carbon steel, nickel, zinc, aluminum, etc
2. Application industries
The handheld laser welding machine can be used in automotive, electronics, steel, aerospace, shipbuilding and other industries
Technical Data
Product name
| Fiber laser welding machine
|
Model
| PE-W1200
|
Laser power
| 1200W(Can be customized)
|
Wire feeding diameter
|
Standard configuration 0.8-1.6mm
|
Net weight of wire feeder
| 13.2KG
|
Weld seam splicing requirements
| Self fusion welding is used for plate thickness ≤ 15% and
≤ 0.5mm, with wire filling welding ≤ 1.2mm
|
Net weight of equipment
| 45KG
|
Equipment size (including casters)
| 600X275X556mm
|
Welding thickness
| ≤ 3.5mm
|
The total length of the welding gun wire
| 10m (the length of the wire feeding tube is 5m)
|
Welding gun weight
| ≤ 0.7KG
|
The total power of the equipment
| 4.5KW
|
System languages
| Chinese, English, Korean, Russian, Japanese, German, French, Spanish, Portuguese, Turkish, Greek, Czech, Slovak, Polish, Thai, Vietnamese, Romanian, Italian, etc.
|
Voltage/frequency
| Standard single-phase 220V 50/60HZ
|
Laser
|
Center wavelength (nm)
| 1080±10
|
Operating mode
| Continuous/Modulated
|
Operating temperature
| -10—45℃
|
Power stability
| ±2
|
Output connector
| QBH
|
Core diameter
| 25um
|
Output fiber length m
| 10
|
Input power (V AC)
| Single item 220±10%V AC
|
Power adjustment range %
| 10-100
|
Beam quality BPP
| ≤1.1
|
Cooling method
| Air cooling
|
Laser weight
| ＜24KG
|
Automatic wire feeder
|
Placement environment
| Smooth, vibration free and impact free
|
Working environment temperature (℃)
| -10~40
|
Working environment humidity (%)
| ＜70
|
Maximum supported welding wire weight
| 20KG
|
Maximum supported wire diameter
| 2.0mm
|
Supply voltage (V)
| 220±10％V AC 50/60HZ
|
>>
