Product Details
Product Description
Product Description

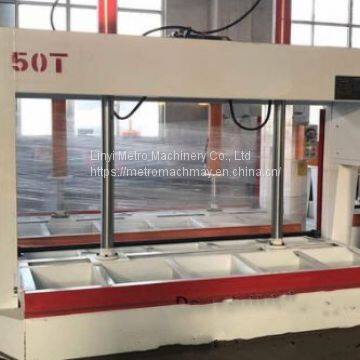

1. Cold Press machine, also know as Pre-press machine, is an essential equipment in the production of door panel etc.
2. It helps to shorten the cycle time of hot press, and initial shaping of glued veneers.
3. Two working ways for option, one is cylinders on top, another is cylinders downsides.
4. Strict quality control, Good quality NO.1 standard steel plate, Top hydraulic unit system, Wuxi solid cylinders, no oil leakage.
Technical Parameters
Various pressure:50T/80T/100T even higher is available.
Pressing size: 3x6ft, 4x8ft, 5x5ft etc.
| Model | BY814X8/4-IIZ |
| Nominal Gross pressure | 500KN |
| Direction of feeding | Horizontal |
| Opening | 1000mm |
| Main Cylinders | 2xφ110mm |
| Size of workingbench | 2500x1250mm |
| Cylinder Stroke | 1000mm |
| Power | 3kw |
| Control method | Automatic pumping station |
| Machine weight | 2800kgs |
| Chain roller conveyor | Yes,optional |
>>
