Product Description
Product Description

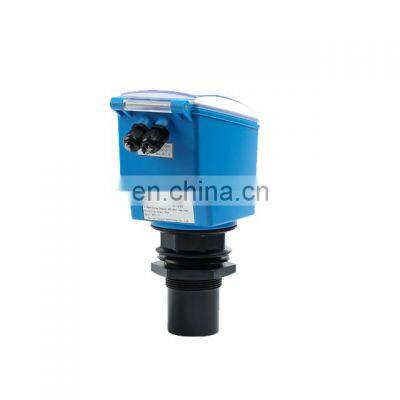

Product DescriptionIntroductions for UTG21-R ultrasonic level transmitterThe UTG21-R ultrasonic level meter is used for Non-contact measurement of liquid, paste and granule material level.SpecificationMeasurement range0～5m, 0～10m, 0～15m, 0～20mBlock distance0.35～0.6mPrecision±0.3%FS* (standard conditions *)Resolution±2mmSupply voltageDC12～36V / AC 85~264VMaximum current output50mA~100mARipple wave requirementLess than ±200mVSimulated currentLoad 500ΩDigital output interfaceRs485 / ModBus-RTUProcess interfaceG1 1/2” or G2”Electrical interfacePG11 or M20×1.5TransmitterABS or Aluminum alloyProbe MaterialOrdinary waterproof ABS / anti-corrosion ETFEFlange MaterialOrdinary waterproof ABS/ anti-corrosionETFEWaterproof gradeIP65Environment temperature-20℃～+60℃. Liquid crystal display is limited if it is lower than -20℃. If outdoor instrument is exposed to sunlight directly, addultraviolet-proof protective cover.Process temperature-40℃～+90℃, high-temperature probe shall be used in case of over 70℃.Process pressure 0.8～3bar or 0.08～0.3Mbar abs / below 3000ApplicationRelated ProductUTG21-H ultrasonic level transmitter UTG21-H ultrasonic level gauge built-in temperature compensation, power adaptive, using a number of self developed patented technology, with a new signal processing technology, which greatly improves the measurement accuracy of the instrument, the interference echo was significantly suppressed Features.UTG21-PY ultrasonic level transmitterUTG21-PY includes several proprietary technologies, is safe and clean, with high precision and long service life, stable and reliable, and convenient to install and maintain, and is applicable to various fields of acid, alkali, salt, anticorrosion, and high temperature. The meter’s all input and output lines must be with such protection functions as lightning protection and short circuit prevention.UTG21-BE ultrasonic level transmitterUTG21-BE for non-contact, not in direct contact with liquid, low failure rate. All input and output lines of the instrument must have lightning protection, anti-short circuit protection. Company ProfileDalian Taijia Technology Co.,LtdDalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thickness meter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical.We have sold product in more than 30 countries, such as America. Italy. India. Korea. Germany. Canada. Australia etc.We thank you for visiting our Web Site and look forward to the opportunity of being of service to you.Contact UsNO.5 Shanshui Yuan, High-tech Industrial Zone Dalian, China 116033E-mail:office at WhatsApp:+86 15541112235TEL:86-411-39685079web:/
>>
