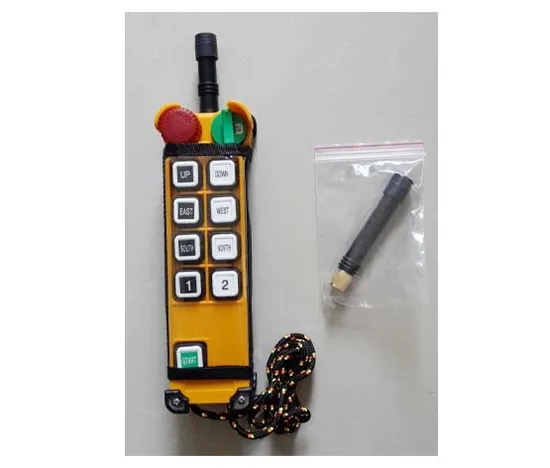

Industry Radio Remote Control F24-8s

Product Description

Industry Radio Remote Control F24-8S
Specifications
1. F24-8S Industrial Remote Control (Telecrane)
2. Single/double speed available
F24-8S Industrial Remote Controls (Telecrane), Handheld Control Button, Industrial Remote Control, Wireless Industrial Crane Remote Control Keypad, Crane Push Button
Buttons
8 programmable, single step pushbuttons, EMS plus start and stop
Transmitter
Dimension: 186x61x51mm
Weight: Approx. 255g (without batteries)
Receiver
Dimension: 200x162x107mm
Weight: 1200g (without wire cable)
Receiver Power Supply: 24/48/110/220/380 VAC
Detailed Product Description
Radio Remote Controls have become a key element within a modern working context where safety, productivity, freedom of movement has a continuously increasing importance. Industrial radio controllers are consequently for time saving and risk reduction working instruments.
Durable nylon-fiber housing for extra shock resistance.
Low power consumption with 2 AA batteries (last up to 2 months in normal operation).
Operating range up to 100 meters.
Programmable function setting through Windows-based software.
Economic efficiency, ease of operation.
Pre-wiring standard cable making wiring procedures easier.
100% compatible components reducing stock of spare part.
Safety features
4.3 billion unique ID code
Hamming code
Enhanced watch-dog circuit
Application
Single or double speed traveling crane and other industrial remote control application with less than 12 contacts.

General Specification
Operating Temp.	-35 o C ~ +80 o C
Maximum Range	100 M
TX power supply	2 AA size Alkaline batteries
RX power supply	AC 24/48/110/220/380 V
	DC 24 V
Protection class	IP 65 Industrial standard
ID Code	4.3 billion (32 bit)
Hamming code distance	> 4
TX Dimension & Weight	186 x 61 x 51 mm Apprx. 255g (w/o batteries)
RX Dimension & Weight	200x162x107mm Apprx.1220g (w/o cable)

---
