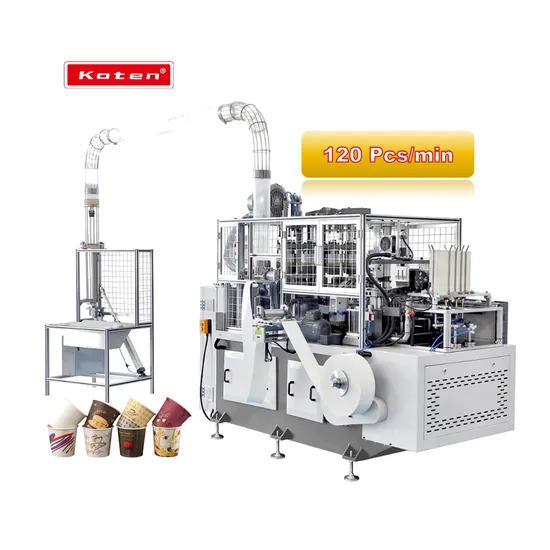

Good Quality Disposable Paper Cup Making Machine Kzb-115s

Product Description

Paper Cup Machine KZB-115S The paper cup machine is a paper container made from raw paper (white cardboard) made of chemical wood pulp, which is mechanically processed and bonded. It has a cup shaped appearance and can be used for frozen food and hot drink items. Featuring safety, hygiene, lightweight, and convenience, it is an ideal equipment for public places, restaurants, and restaurants. Bonding process: The equipment has a heating station to heat the PE film on the surface of the PE coated paper and compact it through the side and bowl bottom pressing mechanism. After cooling, a solid bonding effect can be achieved.

Model	KZB-115S
Paper Bowl Size	3-12OZ
Raw Material	Both sheets can be coated
Max.Speed	100-120pcs/min
Suitable paper weight	160-300g/m²;±20g/m²
Voltage supply	380V(220V)
cup size	bottom 35-62mm, top 45-90mm, high 35-115mm
Working	0.4-0.6Mpa;0.4m³/min
General power	11KW
Weight	2800kg
Measurement(mm)	machine	L:2300mm; W:1200mm;H:1800mm
Cup holder	100kgs	L:900mm;W:600mm;H:1500mm
Cup Side Sealing	EVERGREEN UItrasonic
Bottom	HOT AIR SYETEM

Item	Brand	Origin
Main motor	Zhibao	Shanghai
Knurling motor	Li Chao	Shanghai
Bottom feeding motor	Mig	Hangzhou
Lubrication motor	TROCHOLDPUMP
Touch machine	Delta	Taiwan
Main power supply	chint	Zhejiang
PLC	Delta	Taiwan
Drive Sheave	Cam	Shandong
ultrasonic	Kejian	Zhejiang
Button switch	Delta	Taiwan
Temperature module	Otonix	Korea
Pneumatic components	Hongyuan

---
