Sliding Fender Pad UHMWPE Marine Fender Port Collision Pad Dock Buffer

Product Description

Product Description Marine Fender Marine fender is also called dock fender. It's made to protect the dock's equipment and boats approaching .Without dock fender, the boat which is approaching will directly impact the dock's border. It may violently make a great damage of dock's border. Then we have to repair it in order that other boats can well use it. As people said, adding dock fender for boats is necessary.

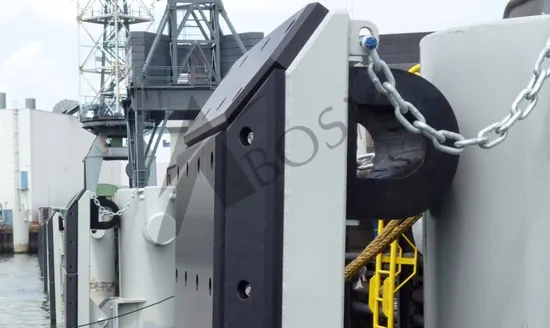

UHMW-PE Marine Fender Face Pad
Ultra-high-molecular weight polyethylene (UHMW-PE) Sliding Plates are typically made from double sintered Polyethylene (a blend of reclaimed and virgin material). 100% virgin material is also available. The superior physical and mechanical properties result in highest strength with wear resistance and consequently provides the best durabilty of all available Polyethylene products. The vast majority of steel fender panels are equipped with UHMW-PE Sliding Plates. PE Sliding plates PE fender UHMW-PE Sliding palte Hdpe sliding fender.
The manufacturing process limits the cross-sections and plate dimensions.
Typically UHMW-PE Sliding Fenders are available in thicknesses from 2 mm to 200 mm for regenerated material and 2 mm to 400 mm for virgin material. Plate sizes range from 100 x 100 mm up to 6,000 mm x 2,500 mm. Cone fender Cell fender Element fender Pile fender. The standard color is black. Other colors such as green, yellow, white or red are available upon request.
composite fender Marine fender
Widespread Application What types of fenders use UHMW PE Marine fender facing pads?

Cell Fender Cone Fender
Element Fender Pile Fender V-type Fender
Polyethylene marine fender panels are widely used in various types of port and terminal fender systems due to their excellent wear resistance, corrosion resistance, low friction coefficient and lightweight and durability. Whether it is Cone fenders, Cell fenders, V-type fenders, or rubber fenders, PE panels can provide reliable protection, extend the service life of the fenders, and reduce maintenance costs.
Physical Properties UHMW-PE Characteristics
Low friction coefficient
Very high abrasion resistance
UV and ozone resistant
Reduced conductivity optinal
100% recycable & non-rotting

Property	Norms	Virgin Material	Reclaimed Material
Density[g/cm³]	ISO1183	0.94	0.97
Molecular Weight[g/mol]	Viscosimetric Method	4,750,000	≥3,000,000
Fricition Coefficient	DIN/EN/ISO 8295	0.12-0.18	0.15-0.20
Yield Strength[N/SQMM]	ISO527	≥17	≥17
Breaking Strength[N/SQMM]	ISO527	≥30	≥25
Break Elongation[%]	ISO527	≥50	≥50
Shore Hardness[Shore D]	ISO868	≥61	≥63
Impact Strength(with V-notch)[mJ/mm²]	ISO11542-2	≥130	≥70
Temperature Range[ºC]	-	-200 up to + 80	-100 up to +80

Company Profile Abosn (Dezhou) New Materials Co., Ltd. is a scientific and technological innovation enterprise focusing on the research and development, manufacturing, sales and service of engineering plastic products.It covers an area of 160,000 square meters, has 5 production bases, and offices in Beijing, Qingdao, and Dezhou. UHMW-PE front facing plate Arch fender dock fender
The company mainly produces environmentally friendly hollow temporary roads, ultra-high molecular weight polyethylene boards (UHMW-PE), high-density polyethylene boards (HDPE) and special-shaped materials. The company's annual production capacity includes:Marine Fender face pad
Annual output of 100,000 square meters of environmentally friendly hollow temporary roads Annual output of 50,000 tons of ultra-high molecular weight polyethylene sheets
Annual output of 50,000 tons of high-density polyethylene boards
Main products The main products of Abosn New Materials Co., Ltd. cover the following categories: UHMW-PE sheets and rods: including polyethylene sheets and rods of various specifications, suitable for different industrial applications.
Ground protection mats: an environmentally friendly product, mainly used for temporary transportation channels in airports, oil exploration, construction and other scenarios. PE Fender panels: used for the protection of ships and docks, with good buffering and anti-corrosion properties.
Coal bunker liner: used in coal bunker linings in coal mines, power plants and other industries to prevent coal from wearing out equipment.
Other polymer plastic products: such as nylon plates, flame retardant linings, radiation shielding materials, MG engineering plastic alloys, etc.

---
