2 Layer Single Wall Corrugated Paperboard Single Facer Group

Product Description

Product Description
2 Ply Corrugated Paperboard Production Line

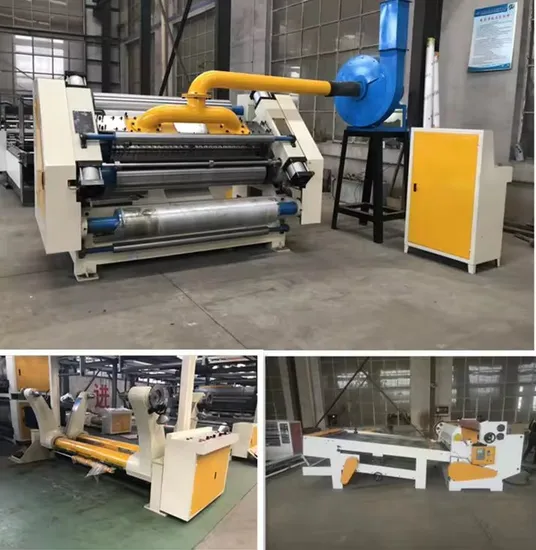

Single facer group = electric roll stand+single facer+sheet cutter with stacker Detailed information SF280-1600 single facer machine
INSTRUCTON AND FEATURES
1. Paper feeding way is vacuum suction way and perfect flute formation in high speed production.
2. Available width:1400/1600/1800/2000/2200 mm
3. Flute type: A, B, C, D, E, F,G UV
4. Corrugated roller:φ280/300/320/360/380mm
5. Drive using chain drive
6. The glue coating part adopt automatic circulating glue feeding way (manual or electrical isolation device)
7. Pneumatic control to adjust the glue feeding and adjust gluing capacity electrically or manually; the glue parts running separately while the main motor stopped, prevent paste from drying up.
8. It is equipped with the high pressure powerful air fan with the wind capacity adjustable device and silencer; air source and electric control are in one cabinet
9. The machine wall made by cast iron and thickness 130mm
10. The corrugated roller materials 50CrMo alloy, the inner hole is fine bored, tempered and finish turned and the surface is medium-frequency quenched, CNC polished and fine grinded and hard chrome-plated.
11. The corrugated roller diameter ¢280mm; Hardness can reach more than HRC60 which ensures good wear-resistance and long life service.
TECHNOLOGY PARAMETERS

Model	SF280-1600
Working width	1600 mm
Heating way	electric
Flute type	A B C D E F
Operate direction	Left or right according to customer's factory
Designed speed	60m/min
Economic running speed	30-40m/min
Temperature range	160-200ºC
Air source	0.4-0.8Mpa

Electric shaftless mill roll stand INSTRUCTON AND FEATURES Electric drive,smooth when running,fast change paper roll,easy adjustment Symmetrical structure can install two rolls of paper at the same time and continually change paper roll; It adopts motorized control clamping, loosen, up-down, movement, contraposition, translation . Equipment was made of HT200-wide casting It adopts pneumatic braking. Electrical components are controlled centralized(domestic brand) TECHNOLOGY PARAMETERS

Max working width	1600
Min working width	600mm
Max paper roll diameter	1500mm
Single Side carriage	1500kg
Air pressure	0.6-0.9Mpa
Power	4.5kw

NC Reel sheet cutter with stacker INSTRUCTON AND FEATURES
1. Single knife sheet cutter can do set-length cutting reel paper and single facer board, change order fast, high cutting precision, fast work speed, low waste, it also suit for color-printing box package.
2. Adopts adjustable-speed motor reduce the fault caused by transmission wearing.
3.teeth surface be quenching and grinding, high precision transmission, low noise, transmission part lubrication adopts oil pump automatic recycle design.
4. Used high speed flat type knife, high hardness with long use life. Precision adjustable gapless gear ensure accurate mesh, good cutting with high straightness, protect knife
TECHNOLOGY PARAMETERS

Design speed	80m/min
Working speed	0-60m
Cutting length	300-9999mm
Cutting precision	±1.5mm
Effect width	1600mm
Cutting layer	single layer,double layer

Automatic stacker
1. The Max. Speed of coloection paper:70m/min
2.The Max. Length of collection paper :1600mm
3.This machine can be collected at the same time at most 4 pieces of paper
4.The machine can realize count automatically, automatic stacking, automatic stamping
5.Stacker hight:100mm
6.The machine have special leading edge Aligning institution
7.The automatic stacking machine cost is low,Small footprint, save manpower,Is the best choice of medium-speed fitting machine.
8.Floor area:3.8*1.9m Detailed Photos
