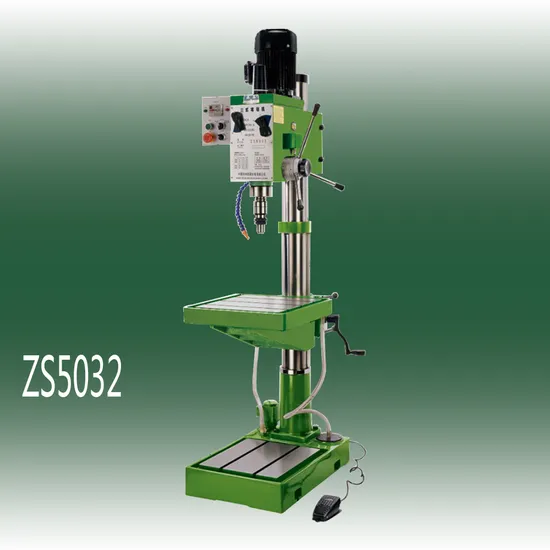

High Speed Vertical Drilling Tapping Bench Drill Zs5032 Metal Heavy Duty Cast Iron Steel Tapper Machine M30 M24

US$2,918.00 1 Piece (MOQ)

Basic Info.

Model NO.
ZS5032
Structure
Bench Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
0
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Motor
1100W
Max Drilling Capacity
31.5 mm
Transport Package
Wooden Case
Specification
190x65x96cm
Trademark
Kuangji
Origin
Shanghai
Production Capacity
300

Product Description

Model ZS4032 ZS-40 ZS5032
Max.tapping capacity(Cast iron/Steel) M30/M24 M30/M24 M30/M24
Max Drilling capacity 31.5mm Steel31.5mm/Cast iron40mm 31.5mm
Spindletravel 120mm 120mm 120mm
Distance spindle axis to column surface 277.5mm 277.5mm 277.5mm
Max.distance spindle nose to worktable 690mm
Max.distance spindle nose to base 700mm 690mm 1200mm
Spindle taper MT.3 MT.4 MT.3
Spindle speeds range 52-560rpm 52-560rpm 52-560rpm
Spindle speeds 6 6 6
Dimension of worktable surface 405*360mm
Dimension of base worktable surface 405x360mm 405x360mm 405x360mm
Headstock travel 360mm 500mm 360mm
Motor 1100W 1100W 1100W
G.W./N.W. 290/240kg 290/240kg 445/392kg
Ship measurement 78x73x142cm 78x73x142cm 190x65x96cm
