Electric power cap type slip ring rotary joint capsule slip ring 600v for monitor robotic

Product Description

Product Description

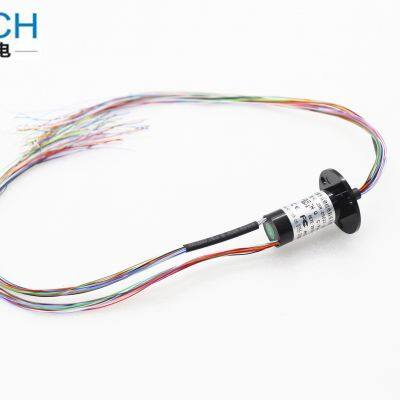

Electric power cap type slip ring rotary joint capsule slip ring 600v for monitor robotic
The JSR-CS Series miniature slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary part to a rotating part.
The JSR-CS Series unit is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connection.
A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure.The JSR-CS Series, with 6 wires and compact 22.00mm body diameter, which we call our “mini”, is our newest design and smallest physical package.uses JARCH's fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates. JSR-CS Series is Compatible with data bus protocols,Transfers analog and digital signals.
Dimension:
CCTV Monitoring System 360° Rotating Long Life mini Capsule slip rings
Specification:

Operating Speed	0-250 rpm
Number of Circuits	2
Voltage	240 VAC/DC
Current Rating	5A per circuit
Temperature Range	-20°Cto +80°C
Contact Material	Gold to Gold
Lead Size	28# silver plated copper
Lead Length	Standard 250 mm(9.843inch)
Dielectric Strength	≥500 VAC @50Hz, between each circuit
Insulation Resistance	100 MΩ @ 500 VDC
Electrical Noise	1mΩMin

Benefits:
· Smoother running.
· Higher design precision
· Lower electrical noise.
· Lower torque, lower contact resistance
· Rapid delivery
CCTV Monitoring System 360° Rotating Long Life mini Capsule slip rings
Applications:
CCTV Monitoring System.
Electrical test equipment.
Medical equipment.
Rotary table
Robotics
Laboratory equipment
Manufacturing and process control equipment
CCTV Monitoring System 360° Rotating Long Life mini Capsule slip rings
Electrical induction motor swivel Capsule slip ring
Installation Instructions
