| US$500.00-15,000.00 | 1 Set (MOQ) |

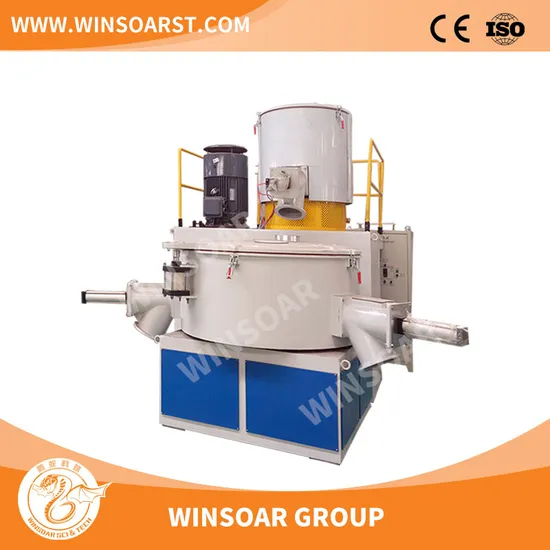

| SRL-Z series vertical type heating/cooling mixer | ||||||
| Suitable for plastics, rubber, chemical and food industry, for power or granulate material blending, coloring and drying. Typical application includes: production of PVC dry blend, filling and modification of plastics, pre-mixing of compounding process and premix of wood-plastic Composites. Features: All important parts (bow, mixing tool, control) are manufactured in our company, which ensure the quality of machine. All material in contact with product is SS304 or aluminum alloy and the product will not be contaminated. High cooling efficiency, short mixing time, easy and convenient to clean high output. Mixing tool can be designed according to different application. Mixing tool coated with wear-resistant material, which can increase service life and past dynamic and balance test, running smoothly. | ||||||
| Technical parameters of SRL-Z series vertical type heating/cooling mixer unit: | ||||||
| Model | Total volume(L) | Effective volume(L) | Motor power(kw) | Shaft speed(rpm) | Heating/cooling method | Discharging |
| SRL-Z100/200 | 100/200 | 75/160 | 12/22/7.5 | 650/1300/90 | Electrical/Water | Pneumatic |
| SRL-Z200/500 | 200/500 | 150/320 | 30/42/11 | 460/920/90 | Electrical/Water | Pneumatic |
| SRL-Z300/600 | 300/600 | 200/360 | 40/55/11 | 475/950/90 | Electrical/Water | Pneumatic |
| SRL-Z500/1000 | 500/1000 | 375/650 | 55/75/15 | 475/950/90 | Electrical/Water | Pneumatic |
| SRL-Z500/1600 | 500/1600 | 375/1200 | 55/75/18.5 | 475/950/68 | Electrical/Water | Pneumatic |
| SRL-Z800/2000 | 800/2000 | 600/1500 | 83/110/22 | 370/740/68 | Electrical/Water | Pneumatic |
| SRL-W series horizontal type heating/cooling mixer | ||||||
| Suitable for plastics, rubber, chemical and food industry, for power or granulate material blending, coloring and drying. Typical application includes: production of PVC dry blend, filling and modification of plastics, pre-mixing of compounding process and premix of wood-plastic Composites. | ||||||
| Technical parameters of SRL-W series horizontal type heating/cooling mixer unit: | ||||||
| Model | Total volume(L) | Effective volume(L) | Motor power(kw) | Shaft speed(rpm) | Heating/cooling method | Discharging |
| SRL-W500/1000 | 500/1000 | 375/660 | 55/75/15 | 430/860/80 | Electrical/Water | Pneumatic |
| SRL-W500/1600 | 500/1600 | 375/1024 | 55/75/18.5 | 430/860/80 | Electrical/Water | Pneumatic |
| SRL-W800/2000 | 800/2000 | 560/1280 | 83/110/18.5 | 330/660/60 | Electrical/Water | Pneumatic |
| SRL-W800/2500 | 800/2500 | 560/1600 | 83/110/22 | 330/660/60 | Electrical/Water | Pneumatic |
| SRL-W1000/3000 | 1000/3000 | 750/2240 | 110/160/37 | 325/650/56 | Electrical/Water | Pneumatic |
| SRL-W1300/4500 | 1300/4500 | 1000/3300 | 132/200/55 | 300/600/50 | Electrical/Water | Pneumatic |
| SHR series high speed heating mixer machine | ||||||
| SHR series mixers are mainly applied in mixing PVC and all kinds of plastic materials. It is widely used in plastics, rubber, food-stuff, daily chemical industry for mixing, coloring, drying etc., with below characteristics: 1. The mixer lid adopt double sealed. 2. With the heating ways of self-friction and electric heating, etc. 3. With discharging ways: Temperature automatic control and manual control. | ||||||
| Technical parameters of SHR series high speed heating mixer machine: | ||||||
| Model | Total volume(L) | Effective volume(L) | Motor power(kw) | Shaft speed(rpm) | Heating method | Discharging |
| SHR-10 | 10 | 7 | 3 | 600-3000 | Friction | Manual |
| SHR-50 | 50 | 30 | 7/11 | 750/1500 | Friction/electrical | Pneumatic |
| SHR-100 | 100 | 75 | 14/22 | 650/1300 | Friction/electrical | Pneumatic |
| SHR-200 | 200 | 150 | 30/42 | 460/920 | Friction/electrical | Pneumatic |
| SHR-300 | 300 | 225 | 40/55 | 475/950 | Friction/electrical | Pneumatic |
| SHR-500 | 500 | 370 | 55/75 | 430/860 | Friction/electrical | Pneumatic |
| SHR-800 | 800 | 500 | 83/110 | 370/740 | Friction/electrical | Pneumatic |
| SHR-1000 | 1000 | 700 | 110/160 | 330/660 | Friction/electrical | Pneumatic |
| SHR-1300 | 1300 | 1000 | 132/200 | 330/660 | Friction/electrical | Pneumatic |
