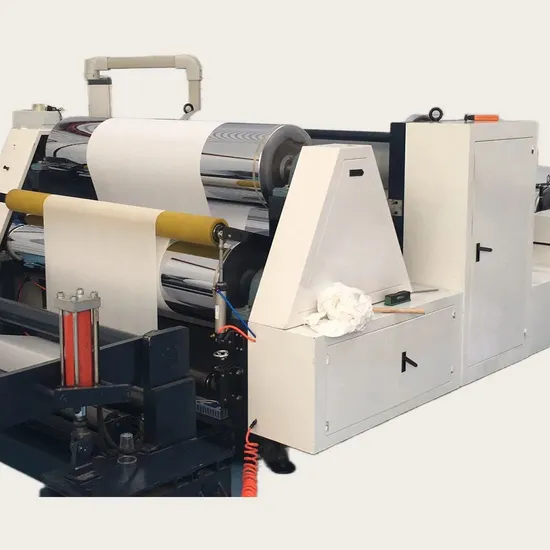

Diaper Topsheet Nonwoven Fabric Sanitary Pad PE Embossing Machine

Product Description

Product Description
Detailed Photos Product application Product Parameters Feautre
This machine is suitable for composite non-woven fabrics, high and low pressure materials, PVC, transparent films Products
such as plastic film, paper, leather, aluminized paper, aluminum foil, etc.Embossing processing of drum accessories.
This machine adopts PLC computer control and operation Simple, precise cutting, and convenient setting.
Excellent craftsmanship creates durability for this machine
The characteristics of grinding resistance and long service life
A. Unwind Unit
1.Unwind diameter Φ1000mm
2.Unwind tension control: 10kg magnetic powder, Automatic tension control
B. Embossing Unit
1.Embossing roller: 190mm×1300mm
2.Rubber roller: 380mm×1300mm
2.Down roller:147×520mm
3. Main motor:5.5kw speed regulating motor with reduction box
4.Cycloid reducer
5.Heater: 1.5kw, 2 pcs
C. Rewind Unit
1.Single station rewind diameter: 1100mm,
2.Servo motor: 7.5kw
3.Tension control: PLC tension control
4. Tension display: touch-screen display
5. Loading way: central coiling, 3-inch air shaft
6. Guide roller diameter: 80mm
7.Guide roller material: aluminun guide roller, brown color, dynamic balance
8. Circular knife cutting device: 1 set
9.Circular knife tool holder: 2 sets
10.The waste edge is blown out by a fan, 0.75kw motor, 1 set
MAIN PARAMETERS

Maximum Material Width	1220mm
Maximum Unwind Diameter	1000mm
Maximum Rewind Diameter	1100mm
Paper Core Size	76mm
Machine speed	100m/min.
Tension setting range	0-15Mpa
Deviation correction accuracy	1mm
Total power of the whole machine	16kw
Machine weight	3600kg
Machine size LxWxH.	4000×2250×1550

Packaging & Shipping
Company Profile
Wenzhou Shuanglong Machinery Co., Ltd. is an enterprise that specialized in complete set of plastic soft packaging equipment.
Our company have more than ten varieties of high-quality products, such as Extrusion coating lamination machine, Embossing machine, Slitting rewind machine, Straw making & packing machine, Paper stick machine, Rotogravure printing machine, Dry laminating machine and Inspection machine, Flexo printing machine etc.
With the purpose of "Quality creats brand, brand promots developing", we provide a wide range of reliable performance, high quality and reasonable price products.
With the philosophy of " Quality of products is quality of life", we makes Shuanglong products fully into life and provide clientsa better service!
Why Choose Us
FAQ
Question 1: Where is your factory located? How can I visit there? Answer: Our factory is located in Wenzhou City, Zhejiang province, China. The nearest air port is Wenzhou airport, we can go Wenzhou airport pick you.
From SHANGHAI by air is 40mins, by train is 4hours.
From GUANGZHOU by air is 2hours.
Question 2: Do you company provided foreign country machine installation services? Answer: We have strong service team can provided all the machines buy from our company foreign country installation service and engineer training service. But buyer need provided the ticket, food, hotel cost etc.
Question 3: How your company provided after sales service?
Answer: All the machines buy from our company guarantee is one year (except any human mistake occurred) , All life time repaire, and 24hours HOT Line.
Question 4: What's the payment method?
Answer: We accepted T/T, L/C, Western Union, Moneygram ETC.

---
