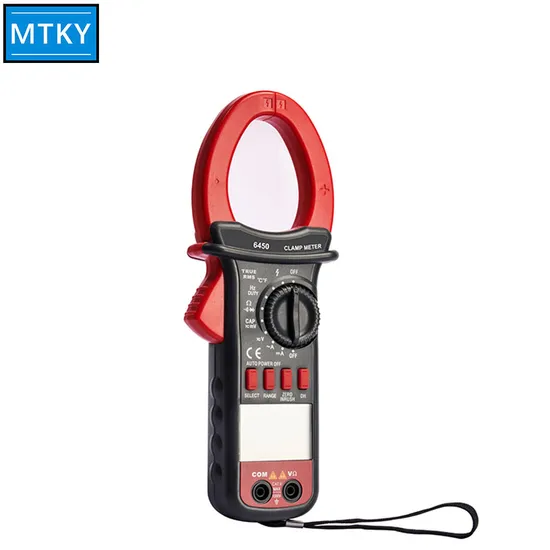

Digital Multimeter AC DC 1000A Resistance/Capacitance/Frequency Clamp Meter

Product Description

Digital Multimeter AC DC 1000A Resistance/Capacitance/Frequency Clamp Meter

Model No.	MT6450
Basic function	Range	Resolution	Accuracy
DC Voltage	400mV	0.1mV	±(0.8%+2d)
	4V	1mV
	40V	10mV
	400V	100mV
	1000V	1V	±(1%+3d)
AC Voltage	400mV	0.1mV	±(1.2%+5d)
	4V	1mV
	40V	10mV
	400V	100mV
	700V	1V	±(1.5%+5d)
DC Current	40A	10mA	±(2%+10d)
	400A	100mA	±(2%+5d)
	1000A	1A
AC Current	40A	10mA	±(2%+10d)
	400A	100mA	±(2%+5d)
	600A	1A
Resistance Ω	400Ω	0.1Ω	±(1%+5d)
	4KΩ	1Ω
	40KΩ	10Ω
	400KΩ	100Ω
	4MΩ	1KΩ
	40MΩ	10KΩ	±(1.5%+5d)
Capacitance	10nF	0.001nF	±(3%+5d)
	100nF	0.01nF
	1uF	0.1nF
	10uF	1nF
	100uF	10nF
	1000uF	100nF
	10mF	1uF	±(5%+5d)
Frequency	10HZ	0.001HZ	±(0.5%+3d)
	100HZ	0.01HZ
	1KHZ	0.1HZ
	10KHZ	1HZ
	100KHZ	10HZ
	1MHZ	100HZ
	10MHZ	1KHZ
Duty cycle	1%~99%	0.001
Temperature	-50-300ºC	1ºC	±(1%+4d)
	301-1000ºC	1ºC	±(1.9%+5d)
	-58-600°F	1°F	±(1.2%+6)
	601-1832°F	1°F	±(1.9%+6)
Input impedance	About 10MΩ
Auto range	Support
Manual range	Support
True RMS	Support
Input protection	Support
Auto power-off	About 10 minutes
Diode test	It can measure the LED working voltage below 3V
Duty cycle measurement	Support
Voltage frequency measurement	Support
NCV (charged) measurement	Support
On-off (buzzer gear)	Support
Low voltage indicator	Support
Data hold	Support
Jaw size	52mm/2.05in
Surge signal measurement	Support
Power supply	1x6F22 9V dry battery

FAQ
1. Are you a manufacturer or a trader?
Yes, we are both.
2. What products do you have?
We are focus on instruments and meters. Such as Mechanical / Optical /Power/ SafetyEnvironmental testing equipments and
some hardware tools amd eletronic components.
More infomation about business, please contact us we can send you catalog for reference.
3. Can i get a sample first?
Yes, we are pleased to send you sample to test the quality and market.
4. Can you do OEM for us?
Yes, OEM are welcome for us. Customers' brand, logo, label can be customized for the produets andcarton package, but based on a certain quantity.
5. What are your strengths?
We have a complete range of products covering low, medium and high-end markets in good price in Instruments field.
Fast Delivery, factory high quality and professional engineers to solve your problems.

---
