Basic Info.
Material
Stainless Steel Carbon Steel
Pressure
Ordinary Pressure
Actuator
Wheel/Bevel Gear/Electric/Pneumatic
Seal Surface
Wedge Gate Valve
Thread Position of Valve Rod
Outside Gate Valve
Usage
Emptying, Drain, on-off Valve
Application
Industrial Usage, Water Industrial Usage
Transport Package
Polywood Case
Production Capacity
1000pieces/Month
Packaging & Delivery
Package Size
60.00cm * 50.00cm * 50.00cm
Package Gross Weight
30.000kg

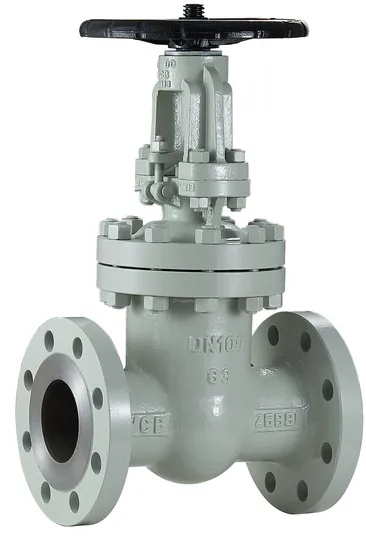

Product Description
Product Description
SIZE: 2"-48"
Pressure: Class150-Class900,PN16-160, 10K-60K
Material: A351CF8M/CF8/CF3/CF3M,A216WCB,A105,A352LCB/LCC,F304,F316,F51/F53,F11,C3,C5,WC6,WC9,2205,TAI2 Suitable Temperature: -196ºC~450ºC( Different temperature choose different materials)
Suitable Medium: Water, Steam, Oil and natural gas etc
Technical Specification Standard Compliance: API 600, BS 1414 Pressure-Temp. Rating: ANSI B16.34 Face to Face: ANSI B16.10 End Flange: ANSI B16.5 (2"~24"), ASME B16.47 (26" Over) Butt Welding Ends: ANSI B16.25 Manufacturing to NACE MR-01-75 (On Request) Inspection and Test: Tested to API 598, BS 6755, Certified to EN10204 3.1B Size: 2"~24"( ANSI B16.5) , 26" over ( ASME B16.47) Working Pressure: 150LB Suitable Medium: Oil, Nature Gas, Water, Steam;Acid, Alkali, Organic Compounds
>>
