Biomass Furnace with Maize Wheat Barley Dryer Paddy Dryer Grain Drying Machine Wheat Dryer

Product Description

Gentle drying of parboiled paddy with TITAN Dryer.
Profit from TITAN's expertise.
Paddy Drying in Batches
Ideal for Drying Small Capacities and Different Varieties of Grains.
In many areas, the amount of harvested paddy varies between the different seasons. In addition, within one season a constant supply of the same paddy quality is rare. This situation leads to difficulties for plant managers to plan ahead for a continuous drying process where always full capacity is required. Therefore, a batch dryer is an ideal alternative solution to dry only a small amount of rice of the same type whenever it comes from the field.
The benefits at a glance:
-. Flexibility to dry small capacities of different paddy qualities at any time
-. Easy to use equipment and process
-. Quick drying process with moisture measurement system included
-. Easy extension of the installed drying performance of the plant at a later stage
Performance Features:
Flexible and Efficient Heat Source
Multiple heat supply is available. To minimize the environment burden, this machine is adopt the technology of low temperature fully drying, and the technology of maximum heat change.
Even Blend and Circular Drying
Max air volume and low temperature drying technology is introduced to this machine (the air temperature is around 40-60C). To minimize the broken rate, and to ensure the products in good condition and to improve the dehydration efficiency, the grains will be heated in a very short time, and then to be tempering for a long time. Thus, production costs will also be reduced at most.
Easy to Operate
High degree of automation. A full touch screen (HMI) with excellent clear display is adopted. And there are automatic and manual modes to choose from, the multi-point safety interlock device is also introduced to this machine.
Tehcncial Parameter:

Item		Unit	Design Value

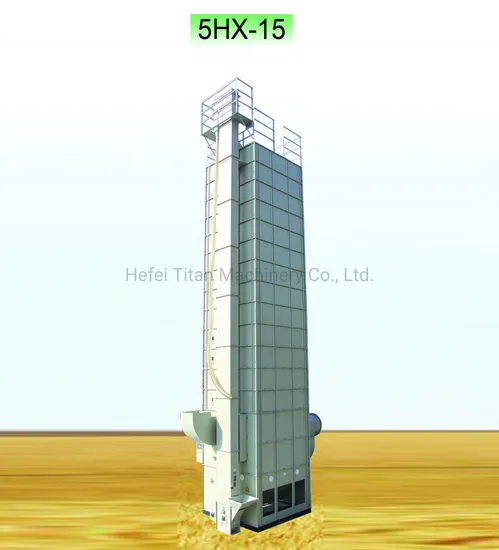

Specification Model		/	5HX-15	5HX-16	5HX-20	5HX-23	5HX-35	5HX-40	5HX-75	5HX-100
Structure Type		/	Batch cycle	Batch cycle	Batch cycle	Batch cycle	Batch cycle	Batch cycle	Batch cycle	Batch cycle
Dimensions (L×WxH)		mm	4350×2550× 11640	3801×3490× 10400	4273×3235× 12035	3710×3490× 13320	5660×4660× 13375	4956×4747× 14936	9635×7040× 15480	9635×7040× 17560
Batch Throughput		T	15	16	20	23	35	40	75	100
Drying Ability		t·%/h	≥12	≥9	≥11	≥12	≥24	≥21	≥45	≥55
Installed Capacity		m³	26.8	28.6	38.2	41.2	62.5	71.8	137.5	185.5
Hotair Temperature Range		ºC	50-120	50-120	50-120	50-120	50-120	50-120	50-120	50-120
Machine Qualty		kg	3240	3685	3884	4500	6240	9878	20738	24575
Fuel		/	Anthracite, biomass
Hot air Blower	Model	/	4-72	4-72	4-72	SHG F 6.7#	4-72	4-72	4-8515C	4-8515C
	Type	/	Centrifugal	Centrifugal	Centrifugal	Oblique flow	Centrifugal	Centrifugal	Centrifugal	Centrifugal
	Wind Pressure	Pa	1196-706	1196-706	1196-706	717-432	1196-706	1196-706	1089-1620	1089-1620
	Blast Capacity	m³/h	7890-15320	7890-15320	7890-15320	7199-12464	7890-15320	7890-15320	39140-73500	39140-73500
	Rotating Speed	r.p.m	1450	1450	1450	1450	1450	1450	850	850
Performance	Feeding Time	min	40-50	40-50	45-50	50-55	55-60	65-70	65-70	65-70
	Discharge Time	min	45-50	45-50	50-55	55-60	60-65	75-80	75-80	75-80
	Precipitation Rate	%/h	0.5-1.0	0.5-1.0	0.5-1.0	0.5-1.0	0.5-1.0	0.5-1.0	0.5-1.0	0.5-1.0
Configuration	Safety Equipment	/	Full grain alarm, thermal relay, air pressure switch, pressure sensor, fuse, hotair temperature sensor, grain temperature sensor, fire extinguisher
	Mode of Operation	/	Automatic operation/timing operation
	Standard Device	/	Moisture detector,grain gate, ladder
	Opional Heat Source	/	Steam boiler,steam heat exchanger, gas burner, hot blast stove, biomass pellet furnace
Total Power		KW	9.77	10.34	10.34	12.84	15.47	17.34	56.9	56.9

Others Scope :
Project Cases:
Packing Details :

---
