The Portable Hardness Tester Is Used to Measure The Hardness of Cast Steel, Alloy Tool Steel, Forged Steel, etc

Product Description

Product Description
Overview

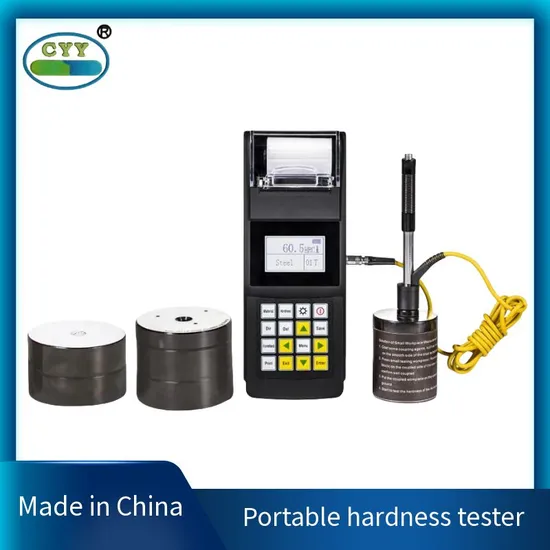

The portable hardness tester CYY-YDJ is a hardness measuring instrument with built-in printer, tolerance setting and other functions. The built-in thermal printer supports on-site instant printing to ensure the fairness of measurement results and the storage and traceability of data. Use full English display, menu operation, simple and convenient operation. Compact, portable and highly stable, the instrument is suitable for harsh operating environments and is resistant to vibration, shock and electromagnetic interference.
Product Parameters

Model	CYY-YDJ
Measuring Range	( 170-960)HLD ,( 17.9-69.5)HRC ,( 19-683)HB,(80-1042)HV , (30.6-102.6)HS , (59. 1-88)HRA, ( 13.5-101.7)HRB
Hardness parameter	HL, HRC ,HRB, HS,HB,HV
Accuracy	±6HLD/ ±1.5HRC
Display	LCD with back-light
Memory	600 groups
PC Connection	Available
Printer	Build-in High-speed Thermal Printer, Width for printer paper:44 .5±0.5mm
Battery type	Rechargeable Li-ion battery
Operating temperature	-20ºC~+60ºC
Dimensions	230×86×46mm
Impact Device Type	D,DC,DL,D+15,G ,C,E
Weight	400g
Standard Delivery	Main unit,Impact Device type D,Operation manual,Power adapter,Small supporting ring,Cleaning brush,instruction manual,Calibration block,paper of Printer.
Optional Accessories	Optional Impact Devices ,Shaped support ring ,Paper for printer

Detailed Photos
Functional features
1. With built-in thermal printer
2. Direct calibrate on HL,HRC ,HB , and freely switch to 6 different hardness scales
3. Test at any angle and direction , even upside down
4. Large LCD screen with back-light, showing all functions and parameters
5. Conversion to tensile strength (U.T.S)
6. Rechargeable Li-ion battery
Measuring materials
10types of metals: steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron , cast aluminum alloy, copper zinc alloys, copper and tin alloy, copper, forged steel
