1kw1.5kw 2kw 3kw 4kw 6kw Water Chiller Water Cooling Machine for Fiber Laser Cutting Machine

Product Description

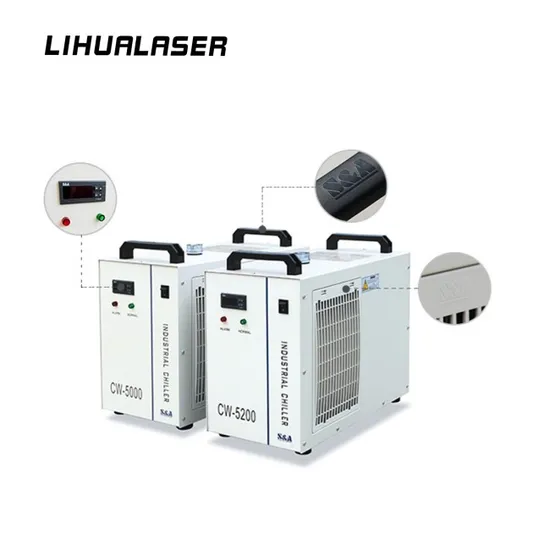

Lihua Sa Industrial Cw 5200 Water Cooled Chiller Laser Equipment 10l 1hp Chiller Our Advantages

Product Parameters

Model(CW)	3000AG	3000DG	5000AG	5000DG	5200AG	5200DG
Voltage	AC 1P 220V	AC 1P 110V	AC 1P 220V	AC 1P 110V	AC 1P 220V	AC 1P 110V
Frequency	50/60Hz	50/60Hz	50Hz	60Hz	50Hz	60Hz
Current	0.45A	0.9A	0.15~2.2A	0.3~4A	0.15~3.8A	0.3~7.4A
Machine power	0.10KW	0.10KW	0.48KW	0.44KW	0.84KW	0.81KW
Compressor power			0.32KW/0.43HP	0.38KW/0.51HP	0.59KW/0.80HP	0.60KW/0.81HP
Rerigerent charge			300g	280g	360g	350g
Pump power			0.03KW		0.03KW
Pump ligt	10M		10M		10M
Pump flow	10L/min		10L/min		10L/min
N.W	9.5Kgs		24kgs		26kgs
G.W	12kgs		27kgs		29kgs
Refrigerant			R-134a		R-410a
Precision			±0.3ºC		±0.3ºC
Reducer			Capillary		Capillary
Tank capacity	9L		6L		6L
Inlet and outlet	External Φ8mm barbed connector		External Φ10mm barbed connector		External Φ10mm barbed connector
Dimension	49X27X38cm(LXWXH)		58X29X47CM(LXWXH)		58x29x47cm(LXWXH)
Package dimension	59X39X48cm(LXWXH)		70X43X58CM(LXWXH))		70x43x58cm(LXWXH)

Our Service
Customer Feedback

♥♥♥♥♥Satisfaction give 5 Star♥♥♥♥♥
If you are satisfied with our machine,please remember to give us 5 stars to support.If you are not satisfied,please contact
us,we will surely give you satified solutions,thanks!
Company Profile
FAQ
Q1:How to choose the suitable parts?A:Please send us the photo about the parts you are using now or let us know your needs,will recommend
you suitable parts.
Q2:What's your parts delivery time?A:Usually within 3 working days if parts are in stock, if not,it need 3~15 days to customize.
Q3: What's your parts warranty?A:No human factors,the parts warranty time is 1 year.If the parts arrived with defects or damage,please
send back picture orvideo immediately,we will replace you a new one or refund you full money.
Quality is our culture! Your satisfaction is our motivation! Don't hesitate.Contact us now!

---
