PVC pipe making machine

Product Details

Product Description

Product Description
PE/HDPE PIPE MAKING MACHINE
PP/PPR/PERT PIPE PRODUCTION LINE
PVC SINGLE DOUBLE FOUR PIPE EXTRUSION LINE
1.PVC pipe extrusion line
Machine List

No.	Equipment list for PVC pipe manufacturing plant	Quantity
1	Mixing machine	1 set
2	Auto feeder	1set
3	Conical double screw extruder	1 set
4	Die head and sizing mold	customized
5	1st cooling tank	1 set
6	2nd cooling tank	1 set
7	haul off device	1 set
8	auto cutting machine	1 set
9	Laser printer or ink jet printer	1 set
10	PVC pipe stacker	1 set
11	Crushing machine	1 set
12	PVC powder milling machine	1 set
13	Air compressor	1 set
14	water chiller	1 set

Technical Parameter

Diameter range(mm)	Extruder Model	Main motor power KW	Max. Capacity(KG/H)	Max. Haul off speed(m/min.)
16-40 Dual	SJSZ-51/105	18.5 AC	150	10
20-63 Dual	SJSZ-65/132	37 AC	250	15
20-63	SJSZ-51/105	18.5 AC	120	15
50-160	SJSZ-65/132	37 AC	250	8
63-200	SJSZ-65/132	37 AC	250	3.5
110-315	SJSZ-80/156	55 AC	450	3
315-630	SJSZ-92/188	110 AC	800	1.2

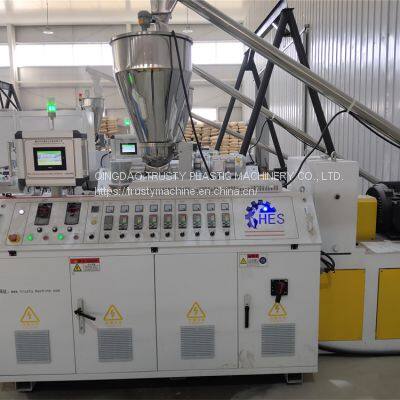

Machine Photos
2.PE pipe extrusion line
Machine List

No.	Item	Qty
1	Automatic Feeder and Drier	1
2	Single Screw Extruder	1
3	Color Line Co-Extruder	1
4	Mould	1
4.1	Die Core
4.2	Die Lips
5	Vacuum Calibration tank	1
5.1	Copper Calibration Sleeve
6	Spray Water tank	1
7	Three cater pillar Haul-off unit	1
8	No dust Cutting machine	1
9	Pipe stacker	1
10	Laser printer	1

Technical Parameter

Model	Extruder	Pipe diameter(mm)	Motor Power(kw)	Output(kg/h)	Length to diameter ratio(L/D)
SJ-63	SJ65	20-63	37	80-150	33:1
SJ-110	SJ65	20-110	55	100-200	33:1
SJ-160	SJ75	50-160	75	150-250	33:1
SJ-250	SJ60	50-250	90	400-500	38:1
SJ-315	SJ90	110-315	160	280-400	33:1
SJ-450	SJ75	200-450	160	600-800	38:1
SJ-630	SJ90	315-630	250	800-1000	38:1
SJ-800	SJ150	450-800	360	600-1300	33:1
SJ-1000	SJ150	630-1000	380	800-1500	33:1
SJ-1200	SJ120/SJ90	800-1200	450	900-1800	33:1

Machine Photos
FAQ
1.Are you a factory or a trading company?
Factory
2.Can I get free samples?
Send free samples. But you need to pay the cost of Express which can be reduced in the order of machine in the future.
3.How do I get response quickly?
If you send email, whatsApp, WeChat to contact us, we promise to reply to you within 8 hours! WhatsApp is the best and 24 hours online:)

---
