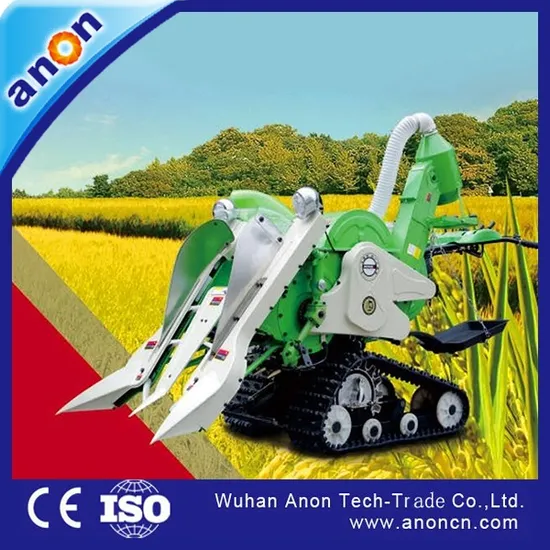

Anon Agricultural Machinery Mini Rice Wheat Paddy Combine Harvester Machine

Product Description

Anon Agricultural Machinery Mini Rice Wheat Paddy Combine Harvester Machine
1.Used safety clutch devices which can protect the key parts of the machinery.
2 can be normally harvested the 70 degrees lodged rice and wheat
3 using differential steering, small steering radius, and flexible steering
4.can be harvested in 20cm deep mud fields
5.can be exchange of gasoline and diesel engine as customer requested.
Specification of Anon Agricultural Machinery Mini Rice Wheat Paddy Combine Harvester Machine

Model		AN4LZ-0.6
Type		tracked
Structure		self propelled track
Working efficiency	ha/h.	0.06 to 0.08
Fuel consumption	kg/ha.	<20
Dimension	mm	2500*1100*1500
Weight	kg	320
Cutting width	mm	800
Feeding capacity	kg/s	0.6
harvesting height	mm	650 -1200
Stubble height	mm	150-300
Working gears		4
working speed	m/s	fast 0.9 ,while slow 0.4
Engine output	kw	5.6/3600rpm
Fuel type		unleaded automobile gasoline
Engine model		SR177F/P
Engine type		Single cylinder, 4 stroke, air cooling gasoline engine
Rubber track		250mm width, ground touching length 870mm
Wheel		diameter 420mm, width 288mm
Working Gear type		Blet and tension wheel type
Traveling gear type		Blet and tension wheel type
Harvest row number	rows	2
Breakage rate		less than 2%
loss rate		less than 3%
Grain Impurity rate		less than 7%

More detail of Anon Agricultural Machinery Mini Rice Wheat Paddy Combine Harvester Machine
New Riding type design
New foldable seats and stand are adjustable, which makes the operator more comfortable and easier to operate.
The structure of the stand structure also helps to improve the viewing angle of the operator. The front end of the blade
is in the visible range during operation. It can completely avoid bumps and impacts caused by visual blind spots.
One-shot operation
The whole machine control system is fully optimized, the handrail structure is changed to the baggage car mode, and the control is more
relaxed and convenient; the centralized control handle and the height-adjustable structural design can fully satisfy the operators of different
heights. The whole machine adopts ergonomics, one-shot control of steering and lifting, field operation and transfer is easier and more efficient.
Lengthened track
The new riding type harvester system has been greatly improved. One is that the overall structure of the crawler belt is
lengthened, and the other is to increase the guide skid. The anti-sag and anti-slip effect is more prominent.
Even if the mud foot depth exceeds 20 cm, the muddy field operation is also It will be level; the guide skid can completely
prevent the track from derailing caused by unilateral stress and abnormal wear.
Split threshing screen
The use of the split screen ensures better cleaning performance, and the control of the impurity rate and loss rate is further improved.
At the same time, it can also quickly block and entangle, and the maintenance process is more convenient; the peeling roller will
be the original three. The reinforcing ring is improved into four channels, and the structural strength and the threshing effect are
obviously improved. After trial and comparison, the improved new harvester has greatly improved anti-blocking and wet-off capabilities.

---
