High Quality Hqt150my-L High Speed Bar Feeder Manufacturer CNC Mill Turn Machine

Product Description

Product Description

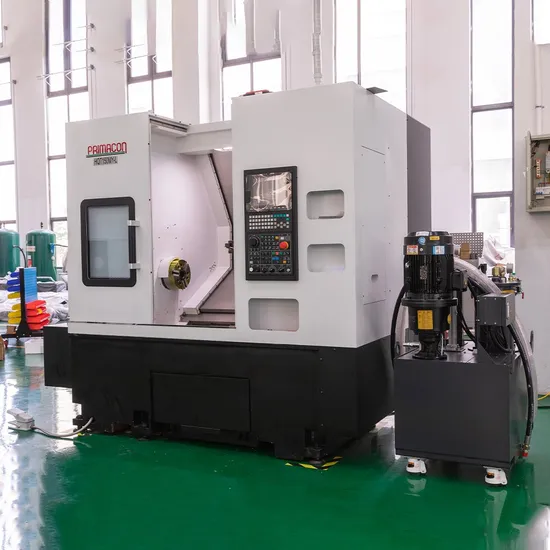

HQT150MY-L is a high-precision and high-efficiency dual-spindle turning and milling compound machine tool, which is widely used in precision machining fields. The machine combines turning and milling functions to complete the machining of complex parts in a single clip, significantly improving production efficiency and machining accuracy.
Detail
Spindle system: Equipped with high precision, high rigidity spindle, can provide strong cutting power. The spindle is supported by high-quality bearings to ensure rotation accuracy and stability. The spindle motor is connected with the spindle through a precision transmission device, which can realize a wide range of speed adjustment to adapt to the processing needs of different materials and processes.
Servo drive: Equipped with high-performance servo drive motor and driver, and CNC system closely cooperate to achieve accurate motion control of each axis. It has the characteristics of fast response speed, high control precision and good stability, which can ensure the performance of the machine tool in high-speed movement and high-precision machining.
Control system: The use of advanced numerical control system, such as FANUC 0i-TF, SIEMENS 828D, etc., with powerful computing power and rich programming functions. The operation interface is friendly, easy to master programmers and operators, and can realize the programming and processing control of complex parts.

CNC control system	SYNTEC 22TB
Maximum turning diameter	Φ 550 mm
Max machining diameter x length	Phi 330 x 460 mm
Spindle through hole diameter	Φ 62 mm
Maximum bar material machining diameter	Phi 52 mm
Maximum support quality	200kgf
Maximum spindle speed	4500rpm
Spindle end form	A2-6
Chuck size	8inch hollow chuck
X axis maximum travel	210mm
Maximum Y-axis travel	±50mm
Maximum z-axis travel	580mm
X axis fast moving speed	30m/min
Z-axis fast moving speed	36m/min
Number of tools installed on the tower	12/15t
Outside diameter tool bar height	25*25mm
Inside diameter Maximum diameter of tool bar	Φ 32 mm
Tail seat sleeve taper	MT4
Tailstock moving speed	8m/min
Tail seat base stroke	440mm
Spindle motor	11/15kw
Milling shaft	3.1 kw
Total machine power	25kw
Cooling tank capacity	220L
Machine height	2150mm
Floor area (length * width)	2335*1690mm
Gross machine weight	4800kg
SIEMENS/FANUC systems	22KW electric spindle
High pressure effluent 30/70Bar	Power seat radial 0°
Feeder, feeder	Automatic door
Tail seat thimble	10inch hollow chuck
Power cutter seat axis 90°	/

Company Profile
Anhui Primacon Intelligent Equipment Co., Ltd. is an Anhui Province SMEs and a national high-tech enterprise. Located in the beautiful city of Tongling, Anhui Province, the company focuses on the research, development, production and sales of multi-axis CNC lathes and machining centers. Introducing advanced technology from Germany and Japan, is committed to improving the quality of machine tools and high level of application, and we also offer automation integration services. Our products are mainly used in fields such as automotive manufacturing, aerospace, mold manufacturing, engineering machinery, and general equipment industry.
The company's main products:
1.High precision CNC lathe HQT series, QTE series; 2.High-precision turning and milling composite series; 3.Vertical, Horizontal, Gantry Machining Center series. We always adhere to the breakthrough innovation, deep plowing expertise, continue to strive forward!
Exhibition
Our Advantages
Certifications
Packaging & Shipping
FAQ
Q: What machining functions do your machining centers support?
A: Our machining centers support drilling, tapping, milling, boring, and turning functions, with multi-axis options (such as 3-axis, 4-axis, and 5-axis) to meet the needs of complex workpiece machining.
Q: What is the precision of your CNC lathes?
A: The machining precision of our CNC lathes typically ranges from 0.001mm to 0.003mm. Depending on the model, higher precision can be customized upon request.
Q: Can the machines be customized according to customer requirements?
A: Absolutely! We support customization of machining range, spindle power, automation level, and fixture and tooling configurations to meet your production needs.
Q: Can you provide automation solutions?
A: Yes, we can provide automation solutions, including automatic feeding systems, robotic arms, and production line integration.
Q: What does your after-sales service cover?
A: Our after-sales service includes providing detailed operation manuals, instructional videos, and remote technical support to help customers quickly learn how to operate the equipment. Additionally, we maintain dedicated service records for each customer to monitor equipment performance and ensure long-term stability. We also supply spare parts and respond promptly to customer inquiries and needs to ensure proper equipment functioning.
Q: What should I do if the machine breaks down?
A: If the machine breaks down, you can contact our after-sales team at any time. We offer remote video diagnosis, phone guidance, and, if necessary, dispatch engineers for on-site repairs.
Q: How long is the delivery time?
A: Standard models usually require 30-45 days for delivery. For customized models, the delivery time may take 60 days or longer, depending on the complexity. The exact delivery time will be confirmed with the order.
Q: How are the machines packaged and transported?
A: Our machines are packaged with waterproof and rustproof materials, reinforced with sturdy wooden crates, suitable for sea and long-distance transportation to ensure the products arrive at your specified location in perfect condition.
Q: What payment methods do you accept?
A: We accept various payment methods, including T/T bank transfers and Letters of Credit (L/C). Please contact us if you have other requirements.
Q: Do you have export experience?
A: Yes, we have been exporting machines to many countries worldwide for years and are familiar with export procedures, including customs declaration, clearance, and providing relevant certificates such as CO, invoices, and packing lists.

---
