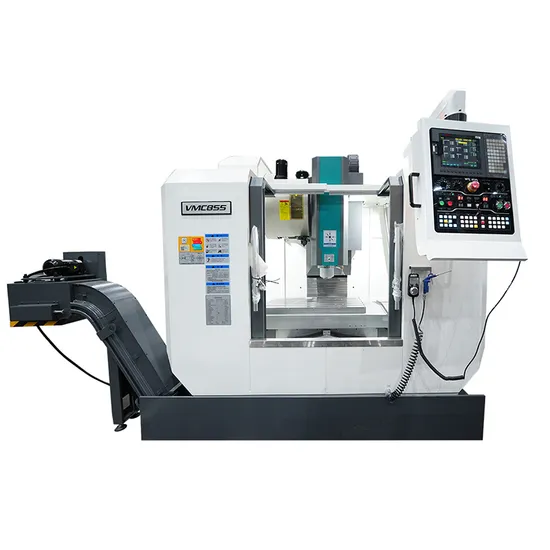

0.01mm Precision Vmc855 Separate Electronic Hand Wheel High Efficiency Machining Center Vertical Milling Machine

Product Description

0.01mm Precision Vmc855 Separate Electronic Hand Wheel High Efficiency Machining Center Vertical Milling Machine
Detailed Photos

Product Parameters

Main specifications	unit	VMC855
Table size	mm	1000X550
T-slot (width-No.-Distance)	mm	18-5-90
Max.table load	kg	500
X-axis travel	mm	800
Y-axis travel	mm	550
Z-axis travel	mm	550
Distance from spinde nose to table surface	mm	150-700
Distance from spindle axis to column surface	mm	590
Spindle taper	--	BT40
Max.spindle speed	rpm	8000
Spindle motor power	kW	11/15
Max.torque of spindle	N.m	52.5/95.5
Tool magazine type		Arm type
Tool magazine capacity	pcs	24
Max diameter of tool(full/Empty)	mm	Ф78/Ф120
Max.tool length	mm	300
Max.tool weight	kg	8
Tool change time(T-T)	s	1.55
Rapid feed speed(X/Y/Z)	mm/min	30000/30000/24000
Cutting feed speed(X/Y/Z)	mm/min	1-10000/1-10000/1-10000
Positioning accuracy(X/Y/Z)	mm	±0.005/300 JIS
Repeat positioning acouracy(X/Y/Z)	mm	±0.003 JIS
Total power capacity	KVA	25
Machine weight	kg	5000
Machine overall size	mm	2550*2300*2700

Product Feature
Applications

Company Profile
FAQ
Q: Are you trading company or manufacturer?
A: We are the manufacturer for 15 years in China.
Q:How can I choose the most suitable machines?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
Q: How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production→cargo ready → balance/delivery → further cooperation.
Q: Did you test all the goods before they were shipped?
A: Yes, we test every product before delivery, the quality can be fully guaranteed.
Q:Do you accept product customization?
A:Yes, we will try our best to meet your requirements.
Q: How to confirm the payment?
A: We accept payment by T/T, PayPal, the other payment ways also could be accepted, Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.
Q: Is your price competitive?
A: Only good quality product we supply. Surely we will give you best factory price based on superior product and service.
If you have another question, please feel free to contact us.

---
