US$35,200.00-36,300.00
|
1 Piece
(MOQ)
|
Basic Info.
Type
Tool Milling Machine
Milling Cutter Type
Angle Milling Cutter
Milling Cutter Structure
Indexable Type
Automatic Grade
Semiautomatic
Certification
CE, ISO 9001
T Slot(No./Width/Gap)
5/18/90mm
X/Y/Z Axes Travel
800/550/550mm
Spindle Motor
7.5/11; 11/15(Opt.)Kw
Spindle Speed
8000rpm(Option:10000 Belt-Drive)
X/Y/Z Axes Motor Torque
22
Positioning Precision
+-0.005mm
Repeatable Positioning Precision
+-0.003mm
Tool Magazine Type
24t Arm Type
Tool Changing Time
Tool to Tool: 1.8s
X/Y/Z Axes Ball Screw Dia./Pitch
40/16mm
Distance From Spindle Nose to Table Surf
120-670mm
Distance From Spindle Center to Column F
600mm
Transport Package
Plywood Case/Steel Pallet
Specification
2500× 2200× 2500
Production Capacity
480 Unit/Year
Packaging & Delivery
Package Size
250.00cm * 320.00cm * 250.00cm
Package Gross Weight
250.000kg
Product Description
- 3 axes ROLLER type linear guideway, Heavy-duty type,suitable for heavy-duty cutting
- Whole production process accord to TAIWAN standard
- Most parts adopt GERMAN/JAPAN/TAIWAN brand
- High speed, high precision, long using lifespan
- Adopt HT300 high class cast iron,after aging treatment and FEA analysis
- Bridge shape column, high rigidity, high stability
- Use 24T Arm type ATC, adopt CAM driving, fast and stable tool changing, tool selection for bi-way as random.
- 3 axes use C3 class precision ball screw, match up nut preloading and ball screw pre-stretching, pre-eliminate
backlash and temperature rising, ensure stable positioning and repeatable positioning precision.

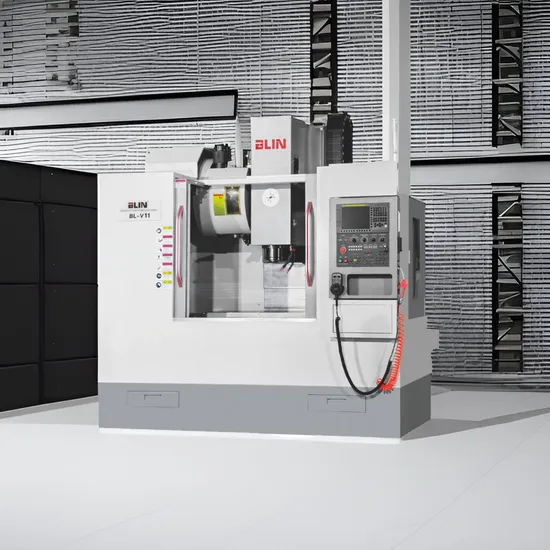

| Item | Specification | Unit | BL-V8 | BL-V11 |
| Worktable | Table size | mm | 1000×550 | 1200(1300*)×600 |
| T slot(NO./width/gap) | mm | 5/18/90 | 5/18/100 |
| Table max. loading | kg | 700 | 900 |
| Travel | X/Y/Z axes travel | mm | 800/550/550 | 1100/600/600 |
| Spindle | Distance from spindle nose to table surface | mm | 120~670 | 120~720 |
| Distance from spindle center to column face | mm | 600 | 650 |
| Spindle type | / | BT40 |
| Spindle motor | kw | 7.5/11; 11/15(opt.) | 11/15 |
| Spindle speed | rpm | 8000(option:10000 belt-drive;12000/15000 direct-drive) |
| Feeding axes | X/Y/Z axes linear guideway width | mm | 35/45/45(ROLLER type)
Z axes 6pcs slide blocks | 45/45/45(ROLLER type)
X,Z axes 6pcs slide blocks |
| X/Y/Z axes max. rapid moving speed | m/min | 48/48/48 | 36/36/36 |
| X/Y/Z axes ball screw dia./pitch | mm | 40/16 | 40/12 |
| X/Y/Z axes motor torque | Nm | 22/22/22 |
| Precision | Positioning precision | mm | ±0.005 |
| Repeatable positioning precision | mm | ±0.003 |
| Tool magazine | Tool magazine type | / | 24T Arm type |
| Max. tool weight | kg | 7 | 8 |
| Max. tool length | mm | 280 |
| Max. tool dia.(fully loaded) | mm | 80 |
| Max. tool dia.(no adjacent) | mm | 110 |
| Tool changing time | / | Tool to tool: 1.8s | Tool to tool: 2s |
| Others | Overall Size | mm | 2500×2200×2500 | 2900×2300×2600 |
| Weight | kg | 5500 | 7200 |
Main parts list:
| Item | Brand |
| Spindle bearing | JAPAN-NSK/GERMANY-FAG |
| Ball screw bearing | JAPAN-NACHI/GERMANY-FAG |
| Linear guideway | TAIWAN-HIWIN,PMI/GERMANY-REXROTH |
| Ball screw | TAIWAN-HIWIN/PMI |
| Shaft coupler | JAPAN-NBK/MIKI PULLEY |
| Spindle | TAIWAN-KENTURN/VYU CHENG |
| Tool magazine | TAIWAN-DEX |
| Booster cylinder | TAIWAN-CHEN SOUND |
| Pnuematic parts | TAIWAN-MINDMAN |
| Lubrication pump | JAPAN-LUBE |
| Electric parts | FRANCE-SCHNEIDER |
Standard configuration: - FANUC 0i MF CNC Controller
- 24T Arm type tool magazine Optional configuration: - SIEMENS 828D CNC controller
- Chip conveyor
- Coolant through spindle
- Tool setting probe
- 4th axes
- 5th axes
