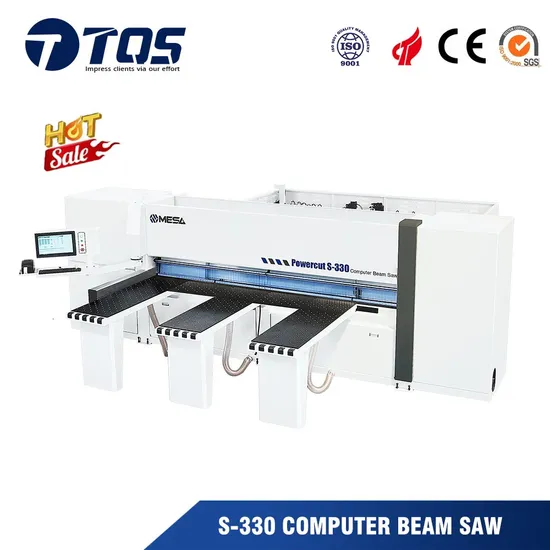

Panel Saw Computer Beam Saw S-330

Product Description

1,Description of product Computer beam saw is the powerful machines for the bulk order furniture making, the max.cutting width will be 3300mm. The machine adopts industrial computer control, with the cutting and optimization software, it is easy to do the operation. Main saw and scoring saw can do the individually elevating, and the quick saw blade changing structure. Max. cutting thickness 100mm, the cutting speed will be 100m/min. 2,Specification

Main saw motor power	16.5KW
Scoring saw motor power	2.2KW
Max. cutting length	3300mm
Max. cutting thickness	100mm
Max. cutting width	3300mm
Positioning type	Automatic
Precision of servo positioning	0.02mm
Cutting precision	±0.1mm
Main saw motor power	16.5KW
Diameter of main saw blade	360-400mm
Main saw shaft diameter	80mm
Main saw spindle speed	4800rpm
Saw carriage driving motor	2.0KW
Clamper driving motor	2.0KW
Saw blade elevating servo	1.5KW
Side alignment motor	0.55KW
Cutting speed	0-100m/min
Saw carriage returning speed	120m/min
Air floating table blower motor	4KW
Air pressure	0.6-0.8Mpa
Air floating table size	1750x540mm
Motor power	28.5KW
Dimension	5900x6650x1900mm
Weight	4900KGS

Main body frame and structure
The use of high-quality steel, high-density welding technology and annealing treatment, effectively ensure the stability and service life of the main body The use of high- quality steel, high-density welding technology and annealing treatment, effectively ensure the stability and service life of the main body.
Electrical components and PLC
Taiwan FATEK PLC large-capacity storage and high-speed processing capability, stable and reliable.
Computer control and interface The machine is controlled by industrial computer, the control panel display interface is simple and easy to understand, the control mode is safe and reliable. Perfectly guided operation and fault alarm troubleshooting prompts, you can edit the desired sawing scheme, and can simulate sawing. Compatible with a variety of optimization software, bar code management software and automation software integration.
Clamping carriage structure
Clamping carriage is driven by high performance servo through rack and pinion, which can realize accurate positioning and ensure sawing precision, thus ensuring efficient and precise sawing.
Air floating table
Adopts air floating table, which can achieve easy in-feeding, and can protect the board surface (especially the melamine and PET laminated board).
With 4.0 KW powerful air blower to ensure the air floating performance.
Saw carriage details
Saw carriage movement along dual-round bar, to ensure the straight cutting line.
Main saw and scoring saw can do individual elevating.
Saw carriage movement is driven by servo motor through rack and pinion.
Clamping device
The board clampers adopts pneumatic structure, the finger with rubber wrapping, which can protect the board surface. The clamping carriage is driven by the servo motor, can achieve the precise positioning.
Side alignment device
In order to get the precise cutting of small boards, the machine come with side alignment device, which can do the alignment of the narrow boards.
It is driven by AC motor through chain.
Servo motor driving through rack and pinion as option.
AC servo with absolute encoder Precision:do the circle control of positioning, speed and torque. Speed: high speed performance is good Adaptability: resistance to overload ability is strong, can bear the load of three times of rated torque, with instantaneous load fluctuations and rapid start required. Stability: stable operation at low speed, it is suitable for occasions with requirement for high speed response. timeliness: motor deceleration dynamic response time is short, generally within a few milliseconds.
INOVANCE inverter High-end intelligent vector inverter, built - in rich motor control mode Can do about 5,000 PLC functions Flexibility to meet different application requirements.
YINCHUANG dust-proof linear guide way
Dust-proof design, lengthened running guide way, processing plate length is unlimited, one time positioning to reduce clamper shifting time.
AIRTEC pneumatic cylinder
Compact structure, effectively save installation space, cylinder inner has been done the rolling treatment and hard oxidation treatment, wear-resisting, durability is good.
Automatic lubrication pump
Good lubrication effect, cylinder type oiling system, all linear guide ways with the individual cylinder oil supply, ensure that all linear guide ways are evenly lubricated.
1. What's your guarantee? Which type of after-sale service can you provide to us? For all the machines, we can offer a 1-year guarantee to our customers; for any parts damaged due to the quality issue, we will send the parts via DHL, FedEx, or air shipment urgently. After-sale service: if you purchased our CNC nesting center or edge bander, and we don't have any dealer or agent in your region, we will send our engineer to your site for installation and training ( you should pay the round-trip flight ticket, salary of engineer- each day 100.00USD, also take charge of the local accommodation. ). Considering the situation, we can do the online training. Also any small issues, you can knock us online, we will offer rapid action to your concerns. 2. Which type of payment term can you accept? How could we keep our capital safe? We can accept the T/T and L/C at sight. We have more than 10 years of exporting experience, so we know more about the capital safety concern of our customers. We will offer the video call or pictures to your side, during our loading, then you can check what we have done for the loading, if any cheating, then you can control your payment (T/T or L/C). 3. What is the leading time, if we did the payment to your side? The leading time of most common machines will be 10-25 days after collecting the down payment/copy of L/C. Specially designed production will take a little bit longer time. 4. Can you accept some O.E. M service to us? or any other service could you do for us? We have more than 15 years experience in the woodworking machinery industry, also have more than 5 experienced engineers, so we can do the special design according to your requirement. Also, our exporting team has more than 10 years of experience in this field, so they can help you to purchase relevant products, parts, or tools, which can save your time and your cost.

---
