Basic Info.
Model NO.
HY-GT680-LK-707
Farming Policy
Bed Planting Machinery
Operation
Soil Preparation Machinery, Fixed Operation
Traction Type
Semi Hanging
Arbor Configuration
Vertical Shaft
Certification
EU, CE, EMC, Euro-II / V
Delivery Date
15 to 20 Days
Production Capacity
30000
Product Description
PRODUCT SPECIFICATIONS:

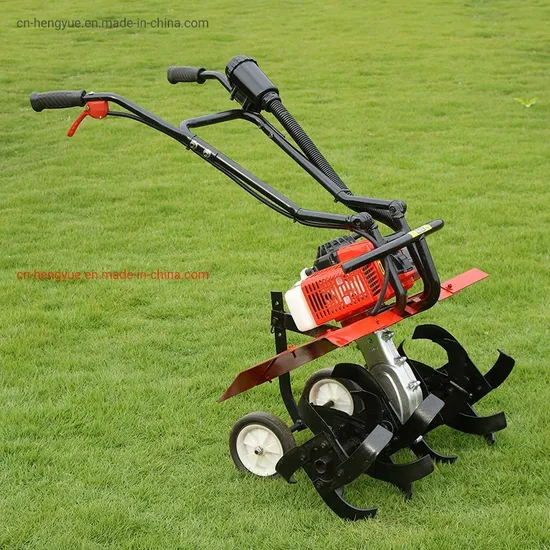

HY-GT680-LK-707 Basic info |
Engine Model: 1E58F-II 2 stroke | Drive mode:3 stages gear wheel ( gear case ass) |
Engine power: 2.3kw/ 3HP | Drive Rate : 50:1 |
Max output speed:8800±300 r/min | Gear wheel metrial : 20CrMnTi |
Displacement : 63CC | Gear wheel structure : Helical & Bevel gear |
Idel speed:2800±300 r/min | Gear wheels : Three-stage transmission |
Air filter : Double air filter | Tilling knife main Characteristics: Adjustable which according to width needs |
Fuel tank capacity: 1.6L |
Fuel tank : With extra external balance air level | Tilling width (1) : 460mm |
Fuel: Gasoline mix 2 stroke Oil (25:1) | Tilling width (2) : 735mm |
Starting systerm:recoil and supper easy starter | Tilling width (2) : 1000mm |
ON/OFF: Sudden accident safety flameout switch | Tilling depth : 300-350mm |
Load Qty: 150pcs/20FCL ; 260pcs/40FCL ; 370pcs/40HQ |
| |
HS code :8432290000 | Shipment port : NINGBO / SHANGHAI |
Production time : 30-35 days | Payment way: TT / LC at sight / Cash |
Package size :65*55*50CM | G.W/N.W:28.6/27kg |
Certicficate : CE / EMC / EURO-II / EURO-V / EPA |
1. When can I get the quotation?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us in your email so that we will regard your inquiry priority.
2. How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
If you need the samples, we will charge for the sample cost. But the sample cost can be refundable after you place an order in the future.
3. Can I add my logo on the carton and stickers?
A: Yes, we can do OEM service, but you need send your carton & sticker design to us.
4. What is your MOQ?
A: Normally, we do not have MQR. If you need do OEM, the MOQ is 500 PCS.
5. What kind of files do you accept for printing?
A: PDF, PSD, EPS, Core Draw, high resolution JPG.
6. How long can I expect to get the sample?
A: After you pay the sample charge and send us confirmed files, the samples will be ready for delivery in 2-5 days.
7. What about the lead time for mass production?
A: Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 15 to 20 days.
8. What is your term of payment?
A: By T/T, 30% at first, 70% after loading or see the copy of bill of loading.
9. What are the terms of delivery?
A: We accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or cost effective for you.
