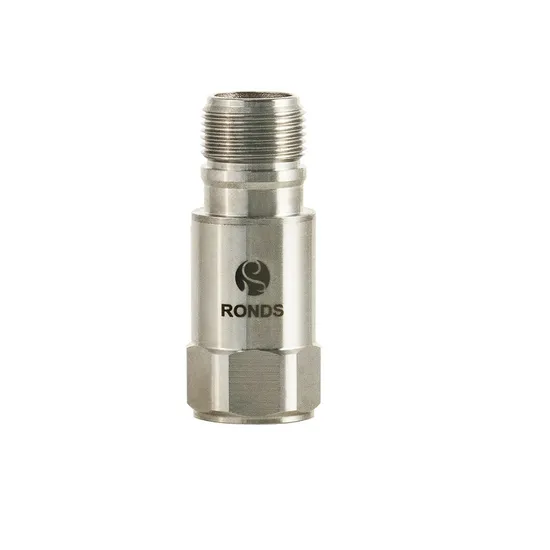

Icp Type Accelerometer, Vibration Sensor for Online Condition Monitoring

Product Description

Features: Built-in IEPE circuit, isolation output, constant flow source power supply. Laser seal welded. Using military connector can be used for the on-site industrial on-line monitoring with bad environment.
Technical parameters:

RH103 Technical Specification
	Parameter	Index		Remarks
	Sensitivity	100mv/g (±10%)
	Acceleration Range	±80g
	Amplitude Linearity	≤1%
	Frequency Response(±10%)	0.7~10000Hz
	Frequency Response(±3 dB)	0.4~15000Hz
	Resonance Frequency	about 30KHz
	Transverse Sensitivity	≤5%
	Mount screw thread	6mm
	Settling time	≤2S
	Bias Voltage	10.5-13.5VDC, typical 12VDC
	Constant Current	2-20mA,Typical 4mA
	Voltage Excitation	18-30VDC, Typical	24VDC
	Output Impedance	<100Ω
	Casting Dielectric Resistance	>108Ω
	Maximum Shock Level	5000g
	Weight	61g
	Dimensions	Diameter × Height,	18.5x47.7(mm)
		(mm)
	Sealing arrangements	Laser welding
	Transducer composition	Plane shear
	IP Grade	IP 68
	Casting Material	316L Stainless Steel
	Output Mode	Top Output,2 pin Mil-C-5015
	Temperature Range	-40~+120ºC
	Mount Torque	About 2.7~6.8N.m (M6)
	Certificate	CE
	Anti-explosion options
	Anti-explosion Identification	ExiaIICT4		Used for 0 Area, 1 Area, 2
				Area
	Temperature measuring options (not standard configuration, optional)
	Measuring Range	0~120ºC		1.Corresponding model
				No.: RH103T.
	Sensitivity	10mv/ºC		2.Top output, 3 pin
				Mil-C-5105

Certificates
After service:
Unconditional Lifetime Warranty
Exhibition and Customers
RONDS Team
30 professional vibration analysts
diagnosis experts with more than 20 years experience
CAT III vibration analysts
CAT II vibration analysts
Intelligent Algorithm--big data team
Algorithm team with 11members, leading by famous doctoral tutor
Big data team with 13 members

---
