High Speed PE Bag Film Blowing Machine with Online Printing Machine Blown Film Extrusion Machine with Printer Blown Film Extruder with Inline Printer

Product Description

When plastic film blowing machine combined with an online printing unit, film blowing machines become even more versatile, allowing for the printing of high-quality designs directly onto the plastic film as it is being produced. This eliminates the need for a separate printing process and reduces production time and labour costs.
The online printing unit can be customized to meet the specific needs of each customer, including the number of colors, print resolution, and printing speed. This makes it possible to create customized designs, logos, and labels for a wide range of products.
So the film blowing extruder with an online printing unit is an efficient and cost-effective solution for producing high-quality plastic films with customized designs. With this equipment, manufacturers can meet the demands of their customers and stay competitive in today's fast-paced market.
Our blown film machine with online printing unit is easy to operate, energy-efficient, and capable of producing films with high optical clarity and mechanical strength. It is able to handle a wide range of plastic materials, including low-density polyethylene (LDPE), high-density polyethylene (HDPE), and linear low-density polyethylene (LLDPE)
With a reliable plastic film blowing machine, our machine can meet customers' production goals with ease and produce high-quality plastic films that meet their customers' expectations.
Optional Equipment:
1. Auto-loader
2. Corona treater
3. Rotary die head
4.Double winder
5. Air compressor
6. High speed screen changer
Here is the machine specifications for reference

Model	XG-SJ50/YT2600	XG-SJ55/YT2800	XG-SJ60/YT21000	XG-SJ65/YT21200
Suitable material	HDPE/LDPE/LLDPE
Film width	100-600mm	100-800mm	100-1000mm	100-1200mm
Film thickness	0.006mm-0.10mm(if you have special request please clarify)
Max.Output capacity(kg/hr)	HD:35kg LD:40kg	HD:45kg LD:55kg	HD:55kg LD:70kg	HD:70kg LD:90kg
Screw diameter(mm)	50mm	55mm	60mm	65mm
Screw L/D Ratio:	30:1-32:1	30:1-32:1	30:1-32:1	30:1-32:1
Driving motor(kw)	11	15	22	30
Screw material	Full bimetallic	Full bimetallic	Full bimetallic	Full bimetallic
Barrel material	38CRMOALA	38CRMOALA	38CRMOALA	38CRMOALA
Cylinder cooling	250wx1	250wx1	250wx2	250wx2
Temperature control(zone)	5	5	6	6
Die head size(mm)	60/80mm	80/120mm	80/150mm	120/220mm
Air blower(kw)	1.5	2.2	3	4
Roller width(mm)	700	900	1100	1300
Take up speed(m/min)	10-80	10-80	10-80	10-80
Take up motor(kw)	1.5	1.5	2.2	2.2
Winding motor(N/M)	6	6	10	10
Winding speed(m/min)	10-60	10-60	10-60	10-60
Printing unit	2 color	2 color	2 color	2 color
Maximum printing width(mm)	560	760	960	1160
Cylinder size with machine for free	400mm one set or as client request	400mm one set or as client request	400mm one set or as client request	400mm one set or as client request

Machine procedure
Sample film

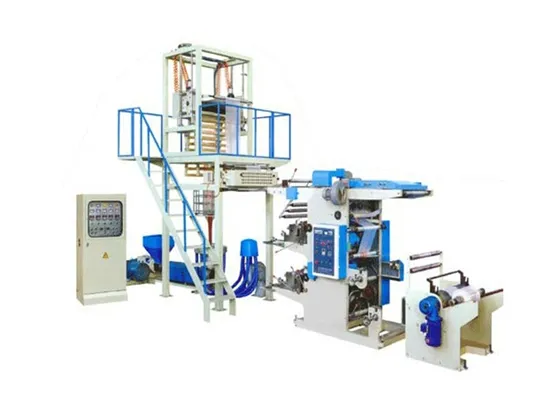

Machine outlook
Film blowing machine part
Film blowing machine part extruder unit
Film blowing machine rewinding part
Printing unit
Machine package and shipment
Our Service Team
Factory layout
FAQ

---
