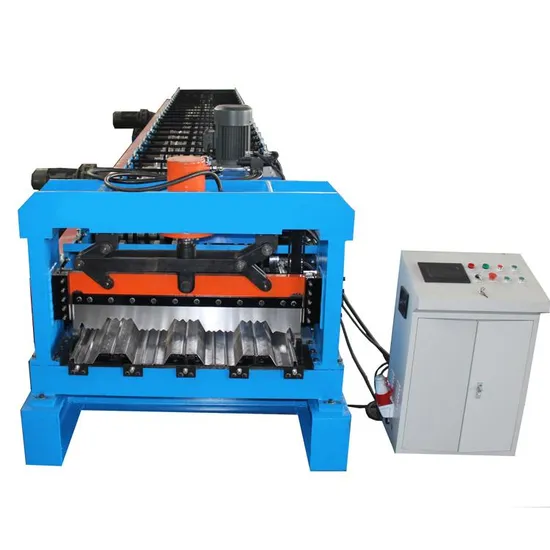

Metal Steel Floor Deck Panel Metal Decking Machine Color Steel Roll Forming Machine

Product Description

Metal Steel Floor Deck Panel Metal Decking Machine Color Steel Roll Forming Machine
2.Main technical parameter : 1.manual decoiler:manual expanding,passive uncoil Inner Diameter. Φ460-520mm Outer Diameter. Φ1400mm 2.weight capacity of decoiler:10T 3.machine stand: welded "" shape steel 4.type of forming machine:wallboard type with chain transmission 5.diameter of shaft: ¢80 6.material of shaft: high-grade 45# steel 7.chain:20A 8.motor power of forming machine:11KW*2 9.forming speed:10-15m/min 10.roll station:24 stations 11.material of roller: high-grade 45# steel 12.surface of roller coated with chrome 0.05mm thickness 13.motor of hydraulic station:3KW 14.hydraulic oil pump:bear pump CB-E314 15.type of cutting:hydraulic cutting 16.material of cutting blade:Cr12 17.heat treatment of cutting blade:HRC58°-60° 18.thickness of steel coil:0.6-1.2mm 19.tolerance of length:10±2mm 20.computer operating board adopts Touch screen 21.Voltage: 380V 3 phase 50HZ or at buyer's requirement 3.Technical process: Manual decoiler→ feed with guide→ roll forming→ cutting with fixed length→ output with table
4. Our Services
1. we can produce the special machine,send your drawing to us,we can design for you.
2. if you buy our products,we also can help you to purchase the material,like color roll,the price is lower than you buy by yourself.
3. we provide a one year warranty and lifelong technical support, we can send our technicians to you to give you on-site training.
The training period would be for no more than one week with the customer paying for the visa, return ticket, food, accommodations and a daily wage of US50.
4. engineers available to service machinery overseas.
5. if you come to visit our factory,we can book the room for you, car pick up to send.

---
