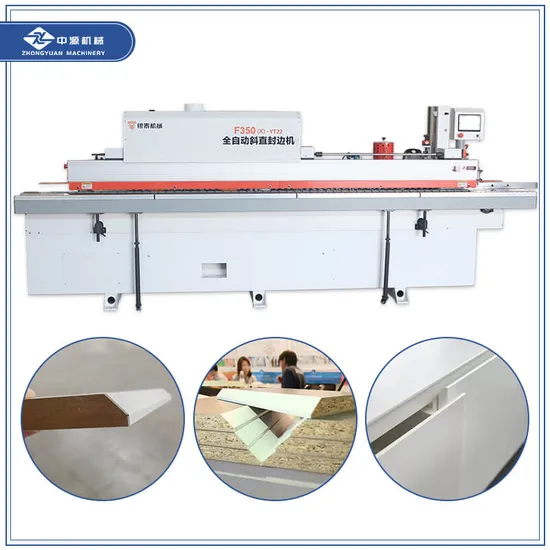

45 Degree Edge Banding Machine PVC Beveled Edge Banding Machine

Product Description

Product Parameters

Beveled and Straight Edge Banding Machine: 1. Easy adjustment of bevel milling shape and automatic pre-milling of bevel shape.
2. Upper glue pot design, available EVA and PUR, one key automatic debonding.
3. Auxiliary heating device makes the seal bond more firmly.
4. 2L air storage tank, more stable pneumatic pressure.
5. Compact structure, easy to transport.

Model	F350
Edge band thickness	0.5-3mm
Edge band width	14-40mm
Edge banding plate thickness	14-25mm
Voltage	380V/50hz/3 phase (can customize)
Total power	15kw
Air pressure	0.6-0.8Mpa
Tank volume	2L
Slotting height	3-23mm
External dust collector	Φ150+Φ100
Glue pot operating temperature	110ºC-210ºC
The narrowest board that can be handled	250mm
Dimensions	4500*1100*1640mm
Weight	1330kg

Detailed Photos

Product Application

Company Profile

Certifications

FAQ
Q1: I already have an edge banding machine and I would like a trimming machine. Do you have any recommendations?
A: Yes, we have a matching trimming machine. You can choose the product that suits you according to your actual production needs. Of course, we will also ask you some questions, such as plate size, plate thickness, equipment voltage, number of workers, and so on. With so many types of products, there is always one that is suitable for you.
Q2: Can your edge banding machine use PUR adhesive?
A: PUR glue has high requirements for glue pots. We recommend using models such as F14620-3700-3350 for up glue pots, depending on your specific needs.
Q3: Are you a factory or a trader?
A: We are a 20 year source production factory with rich production experience and a total of 8000+customers. We can provide you with thoughtful and accurate after-sales service.
Q4: How should I make the payment?
A: Firstly, you will pay a 50% deposit as a prepayment, and then we will start producing the equipment. After the equipment is completed, I will send you photos and videos, and you can make the remaining payment. After receiving all the payment, we will arrange for the fastest container to ship to you. You will receive the equipment soon, and I will arrange professional technicians to coordinate with you regarding installation issues.
Q5: How long is the delivery time?
A: Conventional equipment takes 10-12 days, customized voltage or other parameters take around 30-45 days.

---
