155m 622m 1.25g 2.5g SFP Module, 5g 6g 8g 10g SFP+, 25g SFP28, 40g Qsfp+ 50g 100g Qsfp28 Transceiver SFP

Product Description

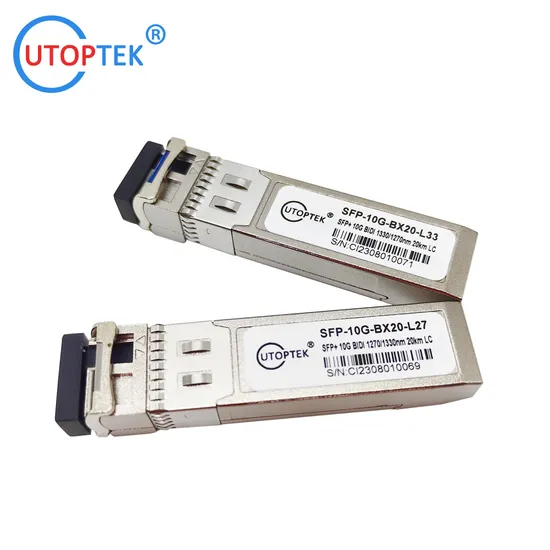

SFP+10G 20KM SFP BIDI Fiber Optic Transceiver Module LC Port 1270/1330nm 10gb SFP Module Product Description
The SFP-10G-BX20-L27 & SFP-10G-BX20-L33 Bi-directional 10Gb/s (SFP+) transceivers are compliant with the current SFP+ Multi Source
Agreement (MSA) Specification. They comply with 10GBASE-LR/LW Ethernet, SONET OC-192 / SDH and 10G Fiber Channel 1200-SM-LL-L.
Digital diagnostics functions are available via a 2-wire serial interface, as specified in the SFP+ MSA.
Product Features:
Supports 9.95Gb/s to 11.3Gb/s bit rates Hot-pluggable SFP+ footprint Single LC for Bi-directional Transmission Maximum link length of 20km Built-in 1270/1330 WDM Filter Uncooled 1270nm or 1330nm CWDM DFB Laser. Power dissipation <1.5W No Reference Clock required Built-in digital diagnostic functions Temperature range 0°C to 70°C Very low EMI and excellent ESD protection RoHS Compliant Part Product Parameters

Brand	UTOPTEK, OEM
Condition	100% New
Form Factor	SFP+
Wavelength:	Tx1270nm/Rx1330nm
Distance	20KM
Data Rate (max)	10Gb/s
Working Temperature (°C)	0°C~70°C
Storage Temperature (°C)	-40°C~+85°C
Relative Humidity	0~85%
Voltage Supply	3.3--5v
Connector	LC
Warranty	3 years
Compatible with	Cisco, Huawei, HP etc.
Time of delivery	2-4 working days
Package	10 pcs/box

Detailed Photos

Packaging & Shipping
Company Profile
High Compatibility for all Brands
Customer's Feedbacks
Certifications
Ordering Informations

10Gbps SFP+ Transceiver
Part No.	Data Rate	Form Factor	Distance	Wavelength	Transmitter	Receiver	Interface	Temp.
SFP-10G-SR	10Gb/s	SFP+	300m	850nm	VCSEL	PIN	LC	0-70ºC
SFP-10G-LR10	10Gb/s	SFP+	10km	1310nm	DFB	PIN	LC	0-70ºC
SFP-10G-LR	10Gb/s	SFP+	20km	1310nm	DFB	PIN	LC	0-70ºC
SFP-10G-ERM	10Gb/s	SFP+	40km	1310nm	DFB	APD	LC	0-70ºC
SFP-10G-ER	10Gb/s	SFP+	40km	1550nm	EML	PIN	LC	0-70ºC
SFP-10G-ZR	10Gb/s	SFP+	60km	1550nm	EML	APD	LC	0-70ºC
SFP-10G-ZR	10Gb/s	SFP+	80km	1550nm	EML	APD	LC	0-70ºC
SFP-10G-ZR100	10Gb/s	SFP+	100km	1550nm	EML	APD	LC	0-70ºC
SFP-10G-BX20-L27	10Gb/s	BiDi SFP+	20km	Tx1270/Rx1330nm	DFB	PIN	LC	0-70ºC
SFP-10G-BX20-L33	10Gb/s	BiDi SFP+	20km	Tx1330/Rx1270nm	DFB	PIN	LC	0-70ºC
SFP-10G-BX40-L27	10Gb/s	BiDi SFP+	40km	Tx1270/Rx1330nm	DFB	PIN	LC	0-70ºC
SFP-10G-BX40-L33	10Gb/s	BiDi SFP+	40km	Tx1330/Rx1270nm	DFB	PIN	LC	0-70ºC
SFP-10G-BX60-L27	10Gb/s	BiDi SFP+	60km	Tx1270/Rx1330nm	DFB	APD	LC	0-70ºC
SFP-10G-BX60-L33	10Gb/s	BiDi SFP+	60km	Tx1330/Rx1270nm	DFB	APD	LC	0-70ºC
SFP-10G-BX80-L49	10Gb/s	BiDi SFP+	80km	Tx1490/Rx1550nm	EML	APD	LC	0-70ºC
SFP-10G-BX80-L55	10Gb/s	BiDi SFP+	80km	Tx1550/Rx1490nm	EML	APD	LC	0-70ºC
SFP-10G-BX80-L49	10Gb/s	BiDi SFP+	80km	Tx1490/Rx1570nm	EML	APD	LC	0-70ºC
SFP-10G-BX80-L57	10Gb/s	BiDi SFP+	80km	Tx1570/Rx1490nm	EML	APD	LC	0-70ºC
SFP+10G-CW10-xx	10Gb/s	CWDM SFP+	10km	1270~1610nm	DFB	PIN	LC	0-70ºC
SFP+10G-CW20-xx	10Gb/s	CWDM SFP+	20km	1270~1370nm	DFB	PIN	LC	0-70ºC
SFP+10G-CW20-xx	10Gb/s	CWDM SFP+	20km	1470~1570nm	DFB	PIN	LC	0-70ºC
SFP+10G-CW20-xx	10Gb/s	CWDM SFP+	20km	1570~1610nm	DFB	PIN	LC	0-70ºC
SFP+10G-CW40-xx	10Gb/s	CWDM SFP+	40km	1270~1610nm	DFB	PIN	LC	0-70ºC
SFP+10G-CW40-xx	10Gb/s	CWDM SFP+	40km	1470~1610nm	EML	PIN	LC	0-70ºC
SFP+10G-CW80-xx	10Gb/s	CWDM SFP+	80km	1470~1610nm	EML	APD	LC	0-70ºC
SFP+10G-CW100-xx	10Gb/s	CWDM SFP+	100km	1470~1550nm	EML	APD	LC	0-70ºC
SFP+10G-DW40-CHxx	10Gb/s	DWDM SFP+	40km	1528.77~1563.86nm	EML	PIN	LC	0-70ºC
SFP+10G-DW80-CHxx	10Gb/s	DWDM SFP+	80km	1528.77~1563.86nm	EML	APD	LC	0-70ºC
SFP+10G-DW100-CHxx	10Gb/s	DWDM SFP+	100km	1528.77~1563.86nm	EML	APD	LC	0-70ºC

FAQ
Q1 . What's your MOQ?
A1 .1 pc/pair is ok, we don't have MOQ limited.
Q2.What certification did you get?
A2 : Our products passed the CE,FCC,ROHS and SGS test, you can trust our quality very good.
Q3 :What about your delivery time?
A3:For small sample QTY,we have in stock, need 1day.
For QTY 200-500, usually will take 2-3working days. for big QTY pls contact our sales about details.
Q4.What your common shipping method?
A4:By air, by sea or express(DHL,Fedex,UPS,TNT,EMS...), We will make a perfect delivery plan for you.
Q5.How about your product warranty time?
A5:Our products have 1/3/5years warranty for different product series.
Q6. How to handle quality issues with your product?
We give you the promise if any question during 1 year and not cause by human factors, we will fix it.
