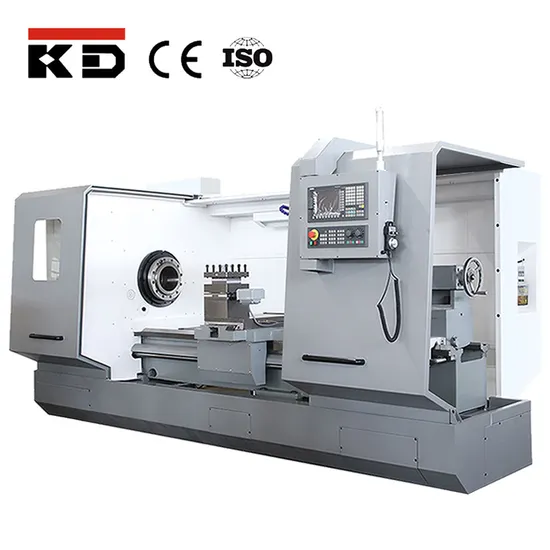

Metal CNC Processing Tzk50A CNC Deep Hole Scraping and Rolling Machine

Product Description

Metal CNC Processing TZK50A CNC Deep Hole Scraping And Rolling Machine
TZK50A CNC deep hole scraping and rolling machine is adopted for the processing cylinder in batch. By use scraping rolling technology used in a variety of cylinder bore surface can precision processed. It can also be used for hot rolling cylinder boring - scraping - rolling finishing machining.The precision can reach
IT7-IT10 and the roughness of surface below Ra0.2-0.4μm.
The machining method is the workpiece fixed and the tools rotate and feed.The bed of machine is double rectangle guideway. The guide carriage is move on the linear guideway by the hydraulic and the workpiece is fixed by taper hole position.It adopts Taiwan Yongzhen hydraulic station.The colling system is ground oil tank structure.The filtrate method is chip conveyor-magnetism separator-fine filtration three grade and the filtrate precision can reach 50μ. The CNC system is Germany SIEMENS system. The
length of cylinder below 3m is feeded by the lead screw and over 3m is by gear-racked. The efficiency of processing is 3-5 times of traditional deep hole machine if use the Germany Wenaroll high efficiency auto combination tools.
Mian Specifications And Feature

	TZK50A(1-8m)
The range of boring diameter	φ200-φ500mm
The range of boring depth	500-8000mm
Width of machine guide way	755mm
The height of center (from the guide way to center of spindle)	650mm
Range of feeding speed	10~3500mm/min(stepless)
The main motor of boring box	N=75kW,CTB spindle drive motor
Range of drill box spindle	10~500rpm
The workpiece clamped diameter by chuck	φ250~φ625mm
Feeding motor	N=7.5kW, AC servo motor
CNC system	SIEMENS 808
Hydraulic pump motor	N=2.2kW,n=1440r/min
Cooling pump motor	N=11 kW n=1440r/min two group one group is controlled by frequency conversion
The rated pressure of cooling syestem	0.6Mpa
The motor of extract pump	N=11kW n=1440r/min two group
The flow of cooling system	100-1500L/min two group one group is controlled by frequency conversion

---
