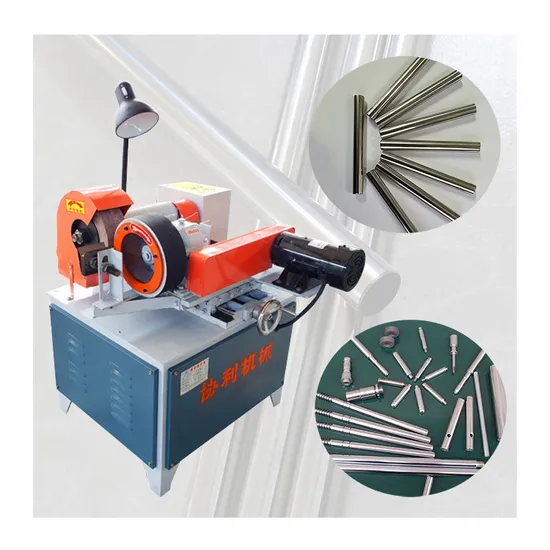

Xieli Machinery Automatic Round Tube Pipe Polishing Machine Ss Stainless Steel Tube Pipe Polisher Machine Polish Range 1-120mm

Product Description

Product Parameters

Project / Model	WX-A1-60	WX-A1-120	WX-A2-60	WX-B1-60	WX-B1-120
Input voltage (v)	380v, 50hz, 3P
Input power (kw)	3.5	4.5	6	4.5	4.5
Polishing wheel specification (mm)	250*40*32 (width can be assembled)
Guide wheel specification (mm)	230*80		230*100	230*120
Polishing wheel speed (r/min)	3000
Guide wheel speed (r/min)	0-120(stepless speed regulation)
Machining diameter (mm)	1-120	50-180	1-120	1-120	50-180
Processing efficiency (m/min)	0.8
Surface roughness (um)	Ra0.02
Wet water cycle dust removal	optional		have	optional
Dry fan dust remocal	optional		have	optional
Machine tool total weight approx (kg)	320	460	860	520	620
Equipment overall dimension (m)	0.7*0.8*1.0	0.8*0.9*1.0	1.2*0.9*1.5	1.0*0.9*1.0	1.1*1.0*1.0

Main uses and scope of application
The round pipe polishing machine is mainly used for rust removal and polishing in industries such as
hardware manufacturing,vehicle accessories, hydraulic cylinders, steel and wood furniture, instrument
machinery, standard parts, and before and after electroplating.
The round tube polishing machine is the best choice for polishing round tubes, round rods, and slender shafts.
The round pipe polishing machine can be equipped with various polishing wheels, such as thousand blade wheels,
hemp wheels,nylon wheels, wool wheels, cloth wheels, PVA wheels, etc. The guide wheel has stepless speed control,
and the operation issimpleand convenient. The steel structure is optimized for more stable performance, and the
reserved fan port can be equipped with a dust removal fan.
Product Description
Detailed Photos
OTHER OPTIONAL PARTS

SOME BUYER FEEDBACK
CUSTOMER VISIT FACTORY
