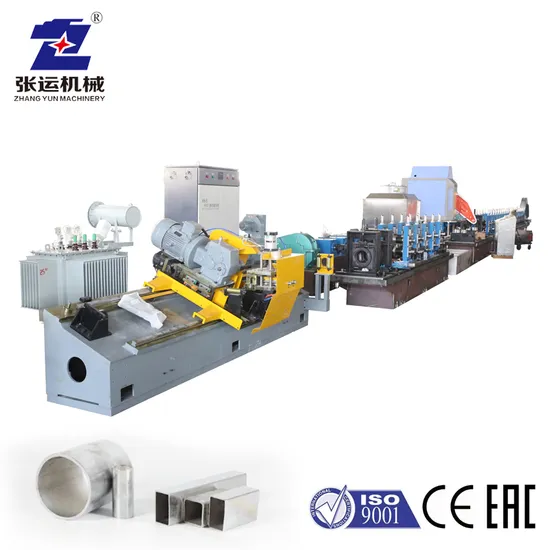

Square /Round /Rectangular Shaped Welded High Frequency Automatic Tube/Pipe Welding Making Machine

Product Description

Square /Round /Rectangular Shaped Welded High Frequency Automatic Tube/Pipe Welding Making Machine

Equipment Specifications

Item	Wall Thickness (mm)	Max. Speed (m/Min)	Main Motor (kw)	H.F.Welder (kw)	Width of Rolled Strip	Thickness of Rolled Strip
ZY-HF16	0.3~1.0	90	22	60	22~55mm	0.3~1.0mm
ZY-HF20	0.4~1.5	90	45	100	30~90mm	0.4~1.5mm
ZY-HF32	0.6~1.8	90	75	100	40~120mm	0.6~1.8mm
ZY-HF45	0.6~2.0	80	90	150	50~160mm	0.6~2.0mm
ZY-HF50	0.8~3.0	70	132	200	60~200mm	0.8~3.0mm
ZY-HF60	0.8~3.0	70	90*2	200	60~240mm	0.8~3.0mm
ZY-HF76	1.2~4.0	70	132*2	300	90~280mm	1.2~4.0mm
ZY-HF89	1.2~4.5	70	132*2	300	100~330mm	1.2~4.5mm
ZY-HF114	1.5~4.0	55	160*2	300	100~400mm	1.5~4.0mm
ZY-HF125	1.5~6.0	50	200*2	400	150~410mm	1.5~6.0mm
ZY-HF165	2.0~6.0	50	200*2	500	150~520mm	2.0~6.0mm
ZY-HF219(6mm)	2.0~6.0	40	200*2	500	350~700mm	2.0~6.0mm
ZY-HF219(8mm)	3.0~8.0	40	250*2	600	270~700mm	3.0~8.0mm

Zhangjiagang City Zhangyun Machinery Manufacturing Co., Ltd. is established in 2002, manufacturer of elevator guide rail processing production line machinery, cold roll forming line machinery and high frequency tube welding line machinery.
Quality Oriented,Technology Innovation is our core concept. Each component of our machines is examined and qualified before assembling; each set of our equipment is fully test run before delivery.
FAQ
1.Q: Are you manufacturer or trading company?
A: We are manufacture and trading company.
2.Q:What info you need before you make the proposal?
A:The pipe diameter and thickness range which you need or the profile drawings, material information, your special requirements.
3.Q: what is the MOQ?
A: One set
4.Q: Do you provide installing and debugging overseas?
A: Overseas machine install and worker training services are optional.
5.Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
6.Q: How does your factory do regarding quality control?
A :There is no tolerance regarding quality control. Quality control complies with ISO 9001.every machine has to past testing running before it's packed for shipment.
7.Q: How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference
2) We welcome you visit us and test machine by yourself in our factory.
8.Q: What about our after-sale service?
A: we provide technical support on line as well as overseas services by skillful technicians.
9.Q: What should I do if I just start a new business?
A:Contact us immediately ,we provide free consultant pre-sales service.Also we can help you to solve the material(steel coil)purchase,worker train,international market price.
10. Q:Can I visit you factory to check machines on-site ? What Should I bring when I visit your factory?
A: We are manufacturer, and we welcome customers to visit our factory. For special product design and develop, we request you bring a piece of testing material, you can test on our machines on-site.

---
