Suntech Automatic Deer Field Fence Fixed Knot Knotted Fence Mesh Making Machine

Product Description

Fixed Knot Deer Fence Making Machine Product Description
The performance of this kind of fixed knot fence is better than that of hinge joint fence.Because it is not easy to move the knot at the wire crossing.It is widely used in grassland, farm, animal husbandry and breeding.
It uses sophisticated computer control, advanced production technology. With novelty, high degree of automation, operational safety and reliability, easy operation, long life and low prices. Product neat and beautiful, diverse specifications.

Product Parameters

II. Main Technical Parameters:

Full Automatic Fixed Knot Fence Machine
Maximum Fence Width	10 feet (3048mm)
Maximum number of Line Wires	21
Line Wire Spacing	1+4*3"+5*4"+2*5"+9*6", Be increased in multiple of 25.4mm (1")
Stay Wire Spacing	75mm,150mm,225mm,300mm, can adjusted by 75mm
Edge Wire Size	∮2.0mm-3.0mm
Line Wire Size	∮2.0mm-2.50mm
Stay Wire Size	∮2.0mm-2.50mm
Knot Wire Size	∮2.0mm-2.24mm
Line Wire Tensile Range	850-1350N/mm2
Stay Wire Tensile Range	525-1200N/mm2
Knot Wire Tensile Range	400-550N/mm2
No. Strokes (Stay Wires) /Minute	20-25row/min
Total Machine weight	7.2TON.
Approximate Floor Area Required	11mx22m
Wire Bobbin	41Units
Air pump	1Unit
Machine color	Customized

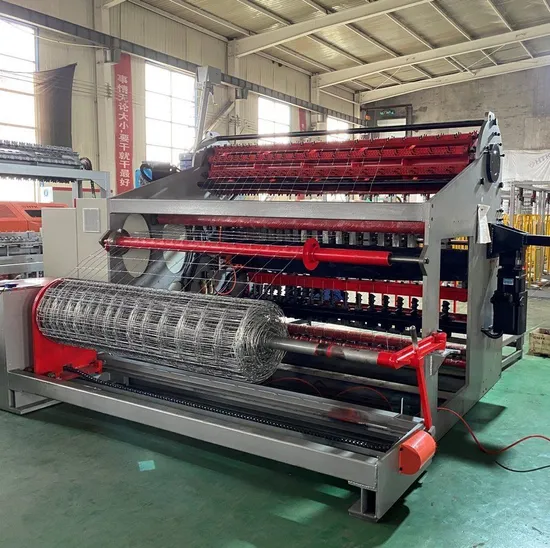

Detailed Photos
For more information, please contact with us by e-mail or by WhatsApp.

---
