Product Details
Product Description
Product Description

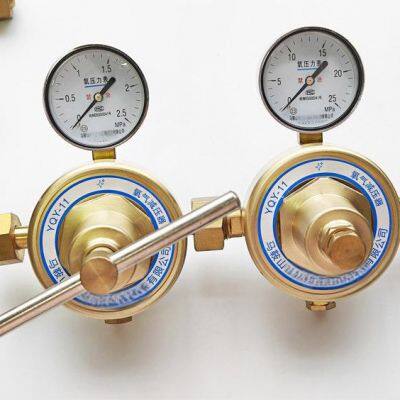

Oxygen Pressure Reducer
YQY-11,
Double-stage Pressure Regulating Valve,
Pressure Gauge,
All-copper Oxygen Pressure Reducing Valve
** **Model**: YQY-11
**Measuring Range**: 0.1 - 1.6 (MPa)
**Applicable Medium**: Oxygen
**Rated Outlet Pressure**: 0.1 - 1.6 (MPa)
**Rated Flow**: 100 (m³/h)
**Purpose**: Oxygen pressure reduction
**Structure**: Double-stage
**Working Principle**: Direct-acting
**Packing Quantity**: 6
**Name**: Oxygen Pressure Reducer
**Material**: Copper
**Model**: YQY-11
**Net Weight**: 4.15 KG
**Medium**: O₂
**Input Pressure**: 15 MPA
**Adjusting Range**: 0.1 - 1.6 MPA
**Nominal Flow**: 100 M³/H
**Import Connection Thread
**: G5/8 **Export Connection Thread
**: G5/8 **Used For
**: Precision control, analyzers, medical equipment, welding, cutting, chemical industry, medicine and health
**Manufacturers of Oxygen Pressure Reducer**
**Highly Anti-shock Oxygen Pressure Reducer
** The structure of the oxygen pressure reducer and pressure reducing valve is compact, equipped with an anti-shock protective cover, which is effective in shock prevention.
**Safe and Leak-proof Oxygen Pressure Reducer** With a unique sealing device, it is safe to use, tight and leak-proof. **Compression-resistant and Drop-resistant Oxygen Pressure Reducer**
The high-strength alloy/all-through valve body is compression-resistant and drop-resistant, durable for long-term use. **Highly Accurate Oxygen Pressure Reducer
** The double-headed meter of the oxygen pressure reducer is a precise instrument, with accurate and clear flow detection, making it clear at a glance. **Manufacturers of Oxygen Pressure Reducer
** # Oxygen Pressure Reducing Valve - The term "Pressure Reducing Valve" clearly expresses the main function of the device, which is to reduce the pressure of oxygen, making the oxygen be reduced from a high-pressure state to a suitable pressure range for use. It has exactly the same function as the oxygen pressure reducer, but the name is more concise and clear.
### Oxygen Pressure Regulating Valve - It emphasizes the function of regulating the pressure of oxygen. By adjusting the opening degree of the valve, the output pressure of oxygen can be precisely controlled to meet different usage requirements, such as the specific requirements for oxygen pressure under various working conditions like medical oxygen inhalation and industrial welding. It is in the essence function of the oxygen pressure reducer.
### Oxygen Pressure Reducing Device - This term focuses more on emphasizing the concept of it as a complete pressure reducing equipment. It not only includes the pressure reducer itself but also covers other components such as connecting parts and pressure gauges related to it. It is a broader expression of the oxygen pressure reducer, highlighting the characteristics of it as a whole pressure reducing system.
>>
