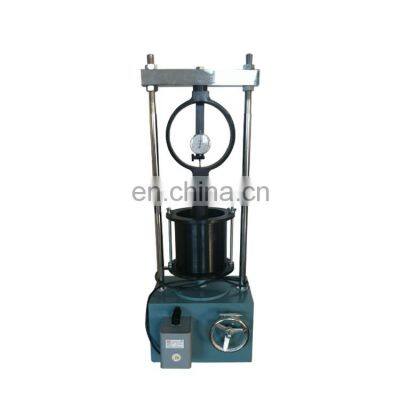

Product Usage and FeaturesCalifornia bearing ratio (CBR) testerProduct usage:The California bearing ratio (CBR) tester is used to test the load-bearing ratio of various soil and pavement base materials and base materials after making parts in a specified test cylinder. Technology Parameters 1. Load-bearing Ratio Tester: * Press speed 1mm / min * Maximum pressure 30kN. 2. Optional Accessories: * Penetrating rod: end face diameter Φ50mm, length 100mm. * Dial indicator: 0-10mm, 2 pcs. * Perforatedplate: one piece. * Load board: 4 pieces (outer diameter Φ150mm, inner diameter Φ52mm). * Test cylinder: inner diameter Φ152mm, height 170mm, spacer Φ151mm, height 50mm, same as heavy-duty compaction test cylinderMaintenance: 1. After each test, the instrument should be cleaned immediately. 2. After one year of use, replace the grease in the gearbox with new grease, and perform regular maintenance in the future.Detailed ImagesTechnical ParametersProductSoil CBR TesterMax. Test Force30KNPress speed1mm/minPenetrating rodend face diameter Φ50mm, length 100mmDial indicator0-10mm, 2 pcsMulti-well plate one pieceLoad board4 pieces (outer diameter Φ150mm, inner diameter Φ52mm)Test cylinderinner diameter Φ152mm, height 170mm, spacer Φ151mm, height 50mm, same as heavy-duty compaction test cylinderPacking Weigh85KGsCompany informationCangzhou Lovely Technology Co., Ltd Cangzhou Lovely Technology Co., Ltd is specialized in Nondestructive Test Instrument and Material testing machine over 10 years,Without advanced technologies and best customer service, Our product has exported to more than 100 countries and regions,which win favorable comments from customers worldwide. We insisted on "Integrity-based, guests supremacy". Welcome customers from all over the world to visit us for business negotiation!The Foreign Trade Department of Cangzhou Lovely Group Co.,Ltd. was established.According to customers' requirements, there has the machine---CZY5 Rebar Weighing and Length Measuring InstrumentIndependent research and development and production of GW50 Automatic Rebar Bending Testing Machine.L800 Integrated Floor Thickness Gauge RBL+ Rebar Detector goes public.New product-- U900 Series Non-Metallic Ultrasonic Detector.HYE-2000 Series Microcomputer Servo Compression Testing Machine: Pad adjustment, Manual screw adjustment, Electric screw adjustment.WAW-B Micro Electromechanical Liquid Servo Universal Testing Machine.EV2 Static Deformation ModulusTester; EVD Dynamic Deformation Modulus Tester. ---Patented ProductThe factory was established, begin to produce more than 20 types instrument.Our ServicesPre-sale service* OEM customized service * Equipment installation and calibration * Free technical training for visiting factoriesAfter-sales service* 24-hour Online consulting support. * Training how to instal use the machine. * the professional after-sale service team will provide perfect technical support.Packing & DeliveryWe promise the delivey in time. And we support customize products for customers. Such as the voltage and package etc. All wooden box are suitable for exporting.FAQQ1: How long is the lead time?A: Normally 3-7 days. Depend on the order quantity.Q2: What is the transportation method?A: By Express, By air or By Sea.Q3: What are the payment terms?A: Credit card ,Bank Wire Transfer, L/C, Western Union etc.Q4: How is the after-sales service?A: 12 months quality warranty with online technical support.Q5: Are there any factory quality certificates?A: We have the ISO certificate and National patent certificates.Q6: Is Lovely test trustworthy?We are a factory specializing in testing equipment used for evaluating construction and civil engineering materials. With more than 12 years' production experience. We would give you an excellent experience!
>>
