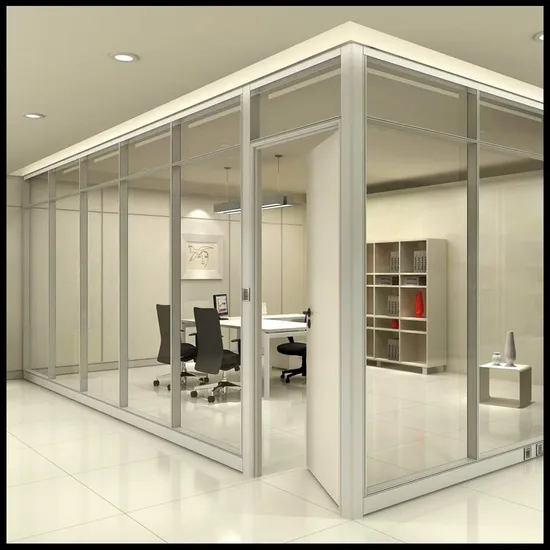

Customization Decoration Full Height Acoustic Office Glass Partition Wall

Product Description

Regarding the purchase of glass partitions, you can directly email me or consult online
83 models of all-aluminum single and double glass partitions
Our biggest advantage
is that we are located in the production base of glass partitions in China, and our mature technical team can provide customized production of various glass doors.
83 models of all-aluminum single glass
Single-glass partition is a single-layer glass partition. Its basic structure is a partition wall composed of single-layer glass and aluminum metal profiles, which has good space and low cost.
83 all-aluminum single glass partitions can be divided into flat single glass and prismatic single glass.
Product introduction
1. Wall thickness: 83mm
frame structure
1. Using high-quality aluminum alloy profiles, snap-on assembly, no exposed screws.
2. Profile characteristics: plane, diamond
3. Aluminum stock color: bronze wire drawing, iron gray wire drawing, champagne wire drawing, sand grain black, oxidation sanding, carbon grey, sand grain white, black wire drawing.
Plate Specifications:
1. Glass thickness: 8mm, 10mm, 12mm
2. Specifications: Standard maximum module (width × height × thickness mm): (1200W × 2800H × 26D) (can be separated horizontally)
3. Fire resistance grade: more than 60min
4. Sound insulation: 38-50dB (in line with normal office environment sound insulation standards)
design drawing
83 all-aluminum double-glass models
Double-glass partition is double-glass partition, its basic structure is a partition wall composed of double-layer glass and aluminum metal profiles, which is firm and durable, and has a stronger overall sense. .
Product introduction
1. Total wall thickness: 83mm
2. Applicable scope: high-end office buildings, open office areas, secret office areas, etc.
frame
1. Profile material: high-quality aluminum alloy frame + tempered safety glass + louver + knob control/electric control/magnetic control (sealed sound insulation design)
2. Profile wall thickness: 1.0-3.0mm depending on the force
3. Profile stock color: bronze wire drawing, iron gray wire drawing, champagne wire drawing, sand grain black, oxidation sanding, carbon grey, sand grain white, black wire drawing
Compatible plates
1. Optional types: transparent tempered glass, frosted glass, fireproof glass, MDF, etc.
2. The thickness of the double-glass partition glass is optional: 5mm, 6mm, 8mm, etc.
3. Louver width: 16mm, 25mm
4. Louver thickness: 1.6mm, 1.8mm, 2.0mm
design drawing
Sectional view of 83 all-aluminum single and double glass frame

---
