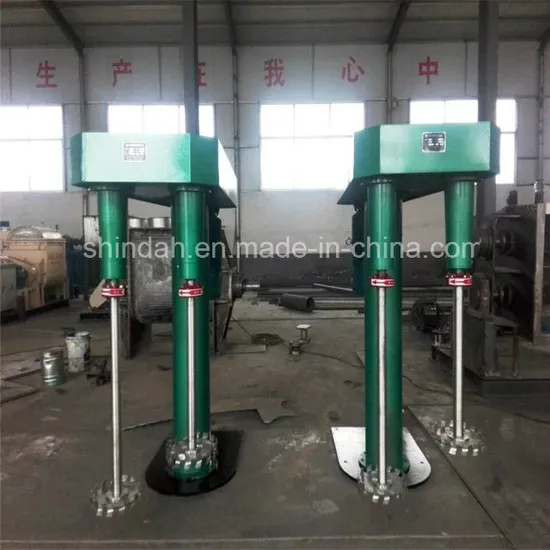

High Speed Paint Mixer

Product Description

1. Features:
hydraulic lifting, 360ºturning, speed adjustable by frequency inverter. One mixer matched with 2 or 4 pieces tanks at the same time. The Lifting ranges 600mm-2300mm as per different models.
According to materials viscosity, double shaft dispersing mixers are available.

2. Advantages:
it can make the material quickly dispersed and dissolved, the particles become fine, with advantages such as evenly stirring no dead angle, easy cleaning; frequency conversion, digital speed display; working continuously for a long time, stable operation, small noise, hydraulic lifting stability.
3. Application:
Widely used in chemical, pharmaceutical, biotechnology, cosmetics, paints, inks, adhesives, dyes, pesticides, food and other liquid / liquid mixing, emulsifying and liquid / solid powder mixing, dispersion and tinting.
Material viscosity: ≤100000cps, solid content less 60% all kinds of slurry.
4. technical data:

Model	capacity(L)	Power(kw)	speed(rpm)	Disc dia(mm)	Lifting range(mm)	Hydraulic power(kw)
SDFS-1.5	≤50	1.5	0-1450	150	600	0.55
SDFS -4	≤200	4	0-1450	200	800	0.55
SDFS -7.5	≤400	7.5	0-1450	230	900	0.55
SDFS -11	≤500	11	0-1450	250	900	0.55
SDFS -15	≤700	15	0-1450	280	900	0.55
SDFS -18.5	≤800	18.5	0-1450	300	1100	0.75
SDFS -22	≤1000	22	0-1450	350	1100	0.75
SDFS -30	≤1500	30	0-1450	400	1100	0.75
SDFS -37	≤2000	37	0-1450	400	1600	1.1
SDFS -45	≤2500	45	0-1450	450	1600	1.1
SDFS -55	≤3000	55	0-1450	500	1600	1.1
SDFS -75	≤4000	75	0-950	550	1800	2.2
SDFS -90	≤6000	90	0-950	600	1800	2.2
SDFS -110	≤8000	110	0-950	700	2100	3
SDFS -132	≤10000	132	0-950	800	2300	3

5. Motors and frequency inverter
from Chinese well-known brand, or Siemens ABB ect if it is required.
welcome to send your detailed inquiry!

---
