Testo 425 - Hot-Wire Anemometer

Product Description

Product Parameters

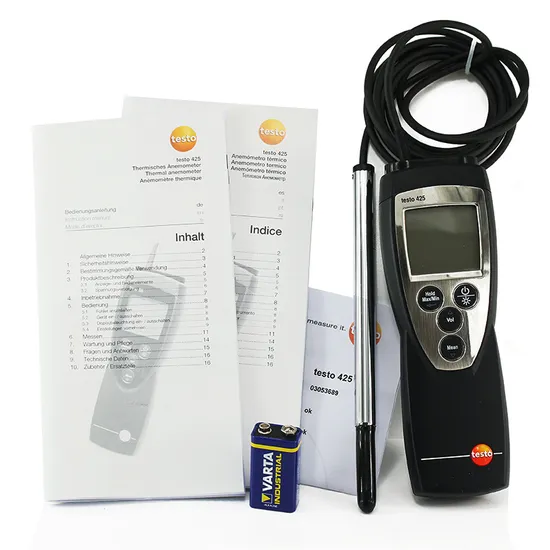

testo 425 CFM Hot-Wire Anemometer
Telescoping hot wire probeMeasures velocity, volume flow (CFM), and temperatureTimed and multi-point average flow calculationsAuto-off function saves battery lifeTelescoping handle extends to 33 inchesMin/Max/Average values make comparisons fast and easyCompact thermal sensor is ideal for in-duct readingsMeasures air velocity from 0 to 4000 FPMBright backlit display provides easy viewing in any environmentDescriptionTesto 425 - Hot-Wire Anemometer Telescoping handle extends to 33 inchesMeasures velocity, volume flow (CFM), and temperatureCompact thermal sensor is ideal for in-duct readingsMeasures air velocity from 0 to 4000 FPMThe testo 425 is a compact anemometer with a fixed thermal flow velocity probe. The probe head has a diameter of 7.5 mm. With the extendable telescope (length max. 820 mm), the measuring instrument is suitable for flow velocity measurement in ducts.
The testo 425 also measures extremely accurately in the low flow velocity range. The volume flow is directly shown in the display. For the purposes of volume flow calculation, the duct area can be easily entered into the testo 425. In addition to this, the instrument can be switched over to display the current temperature. Timed and point mean value calculation provide information on the average volume flow, flow velocity and temperature measurement value. The Hold function allows the current measurement value to be frozen in the display, min./max. values are also displayed at the press of a button.
Manufacturer Specs

Temperature - NTC
Measuring range	-4° to 158 °F / -20 to +70 °C
Accuracy	±0.9 °F (32° to 140 °F) / ±0.5 °C (0 to +60 °C) ±1.3 °F (Remaining Range) / ±0.7 °C (Remaining Range)
Resolution	0.1 °F / 0.1 °C
Velocity - Thermal anemometer
Measuring range	0 to +3937 fpm / 0 to +20 m/s
Accuracy	±(5.91 fpm + 5 % of mv) / ±(0.03 m/s + 5 % of mv)
Resolution	1.97 fpm / 0.01 m/s
General technical data
Dimensions	7 x 3 x 2 in. / 182 x 64 x 40 mm
Operating temperature	-4° to 122 °F / -20 to +50 °C
Housing	ABS
Battery type	9V block battery, 6F22
Battery life	20 h
Storage temperature	-40° to 158 °F / -40 to +70 °C
Weight	10 oz. / 285 g

Tech SpecsEnvironmental Testers / Physical Property/Anemometer / Air Flow TemplateType (anemometer)Measurement (anemometer)Air Velocity MaxAir Velocity MinAccuracy Air VelocityHumidityTemperatureIR Sensor for TempatureThermocouple Sensor for TemperatureDew PointWindchillLight MeterWater ProofMin/Max DisplayData HoldThermal Printer OptionInterchangable Probe OptionsReplaceable VaneMetal VaneTest Equipment General AttributesUnique FeaturesWarrantyWarranty DetailsSafety ApprovalProduct WeightProduct HeightProduct LengthProduct WidthShipping WeightData LoggingHTS/Schedule B NumberECCN NumberCalibration IncludedBattery TypePower Supply VoltageCountry of OriginShipping HeightShipping LengthShipping Width

Hot-Wire

Ft/Min, m/s

4000 ft/min

0 ft/min

+/- 6 fpm + 5% of reading

No

Yes

No

Yes

No

No

No

No

Yes

Yes

No

No

Yes

No

Air velocity,Volume flow (cfm), and temperature measurements Multi-point and timed mean calculations Max-Min values

2 YEARS

2 years from date of purchase

CE

8 OUNCES (0.5 LBS)

1.8 IN

11 IN

4 IN

1 LBS

No

90268020000

EAR99

Factory Calibration

9v

Battery Powered

Germany

3.8 IN

13 IN

6 IN
