55tons Trade Assurance Vertical Plastic Injection Molding Machine for Plugs

Product Description

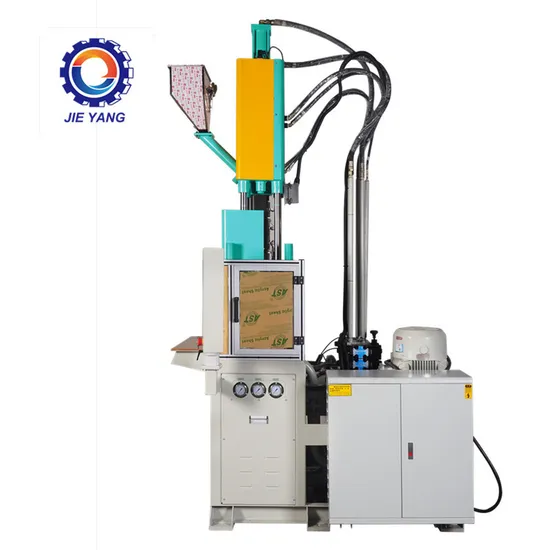

55tons trade assurance vertical plastic injection molding machine for plugs
Function:
1. Vertical direct hydraulic clamping system is designed for accurate, safe operation, especially suitable for insert molding.With double slide table or rotary design, put-in, take-out products and molding finish
at the same time, which is more safe and efficient for production , then reduce the cost of production.
2. High precision mold platen ( Parralelism/ flatness : 0.01/100mm), heavy-duty tie-bars, and low-pressure mold clamping work together to greatly extend machine & mold life.
3. Nitride and NIP/ Nitroflon coated screws and barrels are longlasting, robust and provide superior acid/alkaline resistance.Heavyduty double cylinder injection unit is maintenance friendly and free of oil leaks.
4. All series adapted Variable pump +PQ valves enable energy savings of 30~50%.
5. Proportional hydraulic control system provides low noise, low energy consumption, and smooth machine movements with durable life.

Model	Unit	JY-550ST
Screw Barrel Diameter	mm	32	34	42
Injection Pressure	kg/cm2	1642	1385	960
Max. Shot Weight	gram	102	123	176
Max. Shot Weight	cm3/sec	49	59	84
Screw Barrel Route	mm	140
Screw Barrel Rotary Speed	rpm	0-175
Nozzle Contact Force	tons	5.5
Nozzle Retraction Nozzle	mm	210
Number of Temperature Control	pcs	3
Clamping Force	tons	55
Platen Size	mm	670*480
Distance Between Tie Bere	mm	470*280
Min. Mold Height	mm	270/70
Opening Stroke	mm	200
Max. Opening Mold Distance	mm	470/270
Ejetor Force	tons	1.76
Ejetor Stoke	mm	35
Max. Hydraulic Pressure	kg/cm2	140
Pump Output	L/min	40
Oil Resservoir Capacity	Liter	150
Cooling Water Consumption	L/hr	800-1000
Pump Motor Power	kw/hp	7.5/10HP
Barrel Heating Power	kw	4.5
Total Power	kw	12
Machine Weight	tons	3
Machine Dimension(LxWxH)	meter	1.85*1.2*3
Shipping Weight	tons	2.5
Shipping Measurements(LxWxH)	meter	1.945*1.35*2.44

Packing & Shipping :
1. Before shipping,we will check and test the machine carfully.
2. We will arrange to manufacture the second day after confirmation,we can delivery it usually after 25 days.
3. According to the destination,we will compare several transportation companies and select the most suitable
and economic one to provide service for us
FAQ:
Q1: Are you a trading company or a manufactory?
A1: We own a factory ourselves, and we can assure the quality we manufactured.

Q2:What's your guarantee or the warranty of the quality if we buy your
machines?
A2:We offer you high quality machines with high quality afterservice. Also we have
one year warranty of the spareparts, free of charge.

Q3: Why choose Jieyang Machinery Co.,Ltd.?
A3: Our products with more than 30% energy saving. Highest Cost effective
environmentally. Excellent pre-sale and after-sale services.

---
