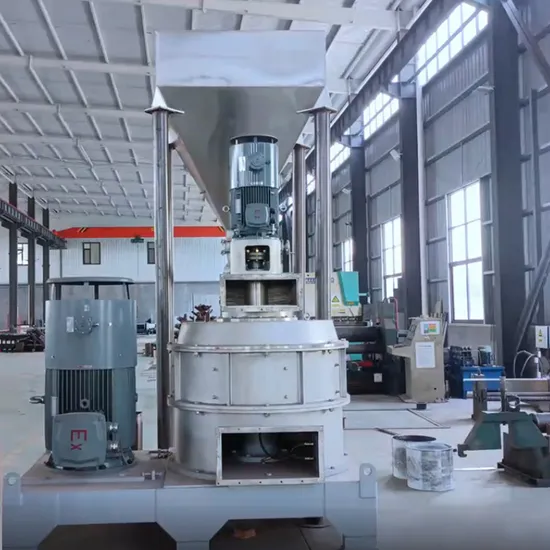

Superfine Powder Mill, Air Classifying Mill

Product Description

Performance Advantages
1. Low energy consumption:
It integrates centrifugal crushing, impact crushing, and extrusion crushing, saving up to 40-50% energy compared to other pulverizer.
2. Fully functional:
Can crush needle shaped materials, achieving a length to diameter ratio of 15:1 for finished products.The crushing process has no temperature rise and is suitable for crushing thermosensitive materials.Can crush materials with high moisture content and has drying function.
3. Negative pressure production, no dust pollution and excellent environment.
4. High degree of automation, strong stability and easy operation.

Application
Non metallic mineral materials: Barite, Wollastonite, Diatomaceous earth, Graphite, Talc, Carbon black etc.
Chemical powder materials: Flame retardants, Aluminum Hydroxide, Silica gel, Sodium hydroxide, Magnesium oxide, Polypropylene amine, Iron oxide red etc.
Battery powder materials: Lithium iron phosphate, Lithium manganese oxide, Lithium cobalt oxide, Lithium titanium oxide, Tetracobalt oxide, Cobalt trioxide,Graphite, Ternary materials etc.
Technical Parameter

Model	Motor Rev.	Fineness	Rotor Diameter	Main Motor	Capacity
PCM400	4800	60 - 2500mesh	400mm	22KW	10 -1000kgs/hour
PCM700	3000	60 - 2500mesh	700mm	45KW	200 - 2000kgs/hour
PCM1200	1800	60 - 2500mesh	1200mm	150KW	1500 - 3000kgs/hour
PCM1400	1500	60 - 2500mesh	1400mm	200KW	2500 - 4000kgs/hour
