XLPE PVC Insulated Low Middle High Voltage 3 Core 4 Core Aluminum Copper Power Electrical Cable Electric Cable

Product Description

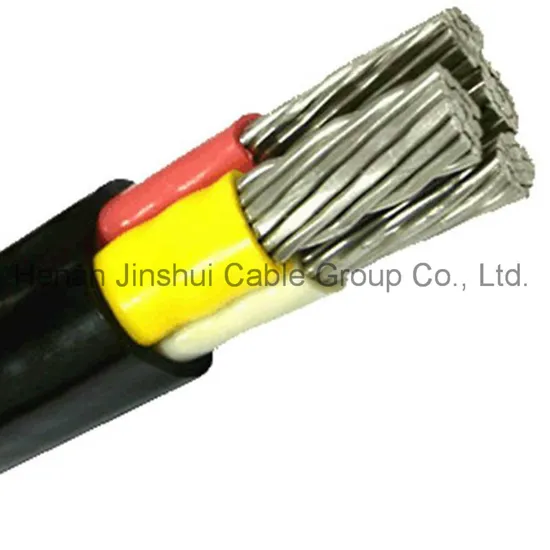

XLPE Insulated Low Voltage 4 Core Aluminum Power Cable
Standard
IEC 60502-1: Power cables with extruded insulation and their accessories for rated voltages from 1 kV (Um=1.2 kV) up to 30 kV (Um=36 kV) - Part 1: Cables for rated voltages of 1 kV (Um=1.2 kV) and 3 kV (Um=3.6 kV)
Application
This XLPE insulated aluminum power cable is used in underground power transmission lines of rated voltage 1KV and below. Flame retardant and fire resistant cables are also available.
Product Details
1) Conductor: solid or stranded copper
2) Sectional area: 2.5~400 mm2
3) Insulation: XLPE
4) No. of cores: 4
5) Outer sheath: PVC
6) Max. working temperature: 90ºC
7) Cable size

Sectional area (mm2)	Insulation thick. (mm)	Sheath thick. (mm)	Overall dia. (mm)	Approx. weight (kg/km)	Max. DC resist. @ 20ºC (Ω/km)
2.5	0.7	1.8	12.4	141	12.32
4	0.7	1.8	13.5	172	7.70
6	0.7	1.8	14.9	217	5.13
10	0.7	1.8	16.7	282	3.08
16	0.7	1.8	19.0	378	1.91
25	0.9	1.8	21.9	527	1.20
35	0.9	1.8	23.7	659	0.868
50	1.0	1.9	25.9	840	0.641
70	1.1	2.1	29.9	1163	0.443
95	1.1	2.2	33.7	1524	0.320
120	1.2	2.3	37.3	1898	0.253
150	1.4	2.5	41.4	2369	0.206
185	1.6	2.7	45.8	2955	0.164
240	1.7	2.9	51.6	3777	0.125
300	1.8	3.1	56.7	4630	0.100
400	2.0	3.3	63.5	5877	0.0778

Packaging details

Polyethylene film packaging 1) Usually used for cables with an overall diameter 10mm and below 2) 100 meters per roll or as per customer's requirements 3) Packaging dimension: 50cm * 50cm * 20cm or below 4) Weight: 30 kg/roll or below

Steel-wood drum packaging 1) Used for cables with a overall diameter of 10mm and above 2) Drum size: 180cm * 180cm *110cm (different sizes are available according to packaging length) 3) Standard length: as per customer's requirements.

Customer service
1) Select the right cable as per customer's requirements
2) Design suitable packaging to guarantee safe and the most economic delivery
3) Provide installation and use guidance
4) Product quality guarantee under the normal use
