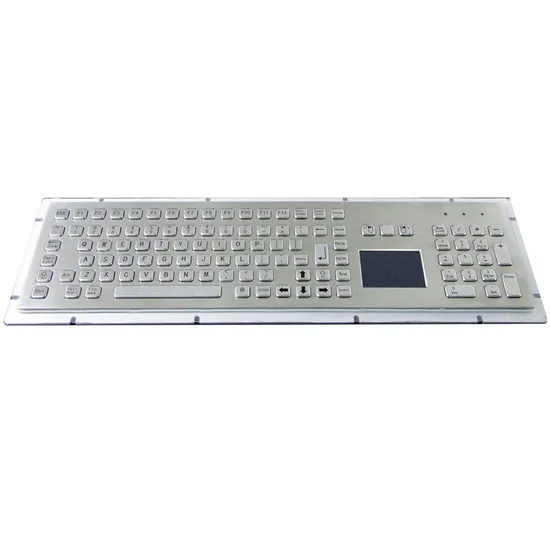

Rugged Panel Mount Industrial Keyboard with Full Keys and Trackpad Mouse

Product Description

Rugged Panel Mount Industrial Keyboard With Full Keys and Trackpad Mouse
Key Features
1) 103 keys(of them 12 function keys), panel mount
2) Integrated touchpad and numeric keypad;
3) Protruding full travel(2.0mm)keys with etched or laser engraved graphics, excellent tactile feel;
4) Specially designed to operate in harsh environments, making them ideal for kiosks and other applications in public places.
5) Built from stainless steel, high vandal-proof.
6) Dust-proof and liquid-proof, meet IP65 requirement
7) PS/2 or USB interface, easy to plug into computer directly
8) Customizable
Specifications
Material
- Front panel & Keys: Brushed stainless steel
- Back panel: Aluminum alloy
- Key cap: Protruding full travel key(2.0mm) with etched or laser engraved graphics
- Touchpad: Synaptics high-sensitivity touchpad
Electrical Data
- Power supply voltage: DC 5 V ± 5%
- Current rating: 20 mA
- Interface: USB or PS2
- EMC compliant.
Emission: EN 50081-1
Immunity: EN 50082-1
- Touchpad resolution: 1000 dpi
- FCC: Part 15, class B
- Safety: EN 60950, CE compliant
Environmental Characteristics
- Operating temperature: -20º C to + 60º C
- Storage temperature: - 40º C to + 80º C
- Saline mist: 96 hours, IEC 60512-6
- Damp heat test at + 40º C: 21 days, IEC 60512-6
- Dry heat test at + 85º C: 10 days, IEC 60512-6
Mechanical Data
- Actuation force for key: 120± 15g
- Key travel: 2.0mm
- Lifetime (cycles): Min 5, 000, 000 actuations
- Sealing protection: IP65/NEMA4X from the front
- Vibration resistance: 5 Hz-200 Hz, IEC 60512-4
- Shock resistance: 3 axis 150 m/s² - 11 ms, IEC 60512-4
Compatible Operation System
- PS2: Win NT4, 98SE, 98ME, 2000, XP, Win7/Linux
- USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX/Win7/Linux,Win8
Weight and Dimension
- Weight: 2.2kg
- Dimension:
Front panel: 478.0 X 135.0 mm
Back panel: 502.0 X 159.0 mm
- Thickness: 32.10mm
Company Information:

KINGLEADER is an ISO9001:2008 certified manufacturer,we are engaged in R&D,production,sale and service of rugged keyboard,rugged keypad,rugged trackball,rugged touchpad and touchscreen kiosk etc.

Moreover, OEM and ODM manufacturing,plastic mold building and plastic injection is a major part of our business.

Why us?

1,ISO9001:2008 certification
2,Audited supplier by SGS,TUV Rheinland and BUREAU VERITAS
3,Reasonable price and fast response
4,Over 10 years of experience in rugged input device and touchscreen kiosk
5,OEM and ODM capability
6,Flexibility in customization and size of order
7,Trusted suppliers of many world-class famous brands in the industry

---
