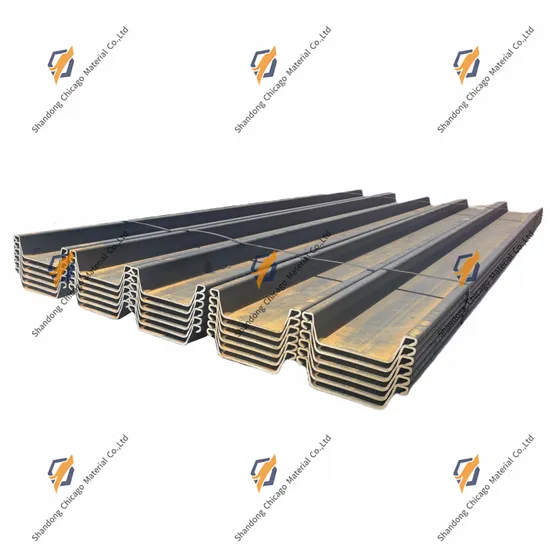

Popular JIS CE Sy295 Sy390 S355gp Hot Rolled U-Shaped Steel Sheet Pile

Product Description

Product DescriptionSTEEL SHEET PILE is a vertical wall formed by a locking connection to maintain earth pressure, water pressure or both at the same time.
More than 10,000 tons of various steel sheet piles have been supplied to overseas customers, of which about 8,000 tons are used in permanent constructions (e.g. shipyards, quays, retaining walls, locks, slipways, pump locks, etc.) and the rest are mostly used in temporary works for engineering projects (e.g. temporary construction cofferdams, tunnel and foundation support, etc.).
Advantages:
-Very easy to lift, transport and install.
-Wide depth of entry, thick flanges, good static properties.
-Symmetrical structure, very easy to reuse.
-Can be pre-assembled at the factory into "pile sets", greatly improving the efficiency of the sunken piles.
-Very easy installation of ties and accessories, even underwater.
-The thickest part is located on the outermost part of the wall (hot rolled), giving it good corrosion resistance
Specification Model

Model	Size			Each sheet pile
	Valid width (mm)	Valid height (mm)	Thickness (mm)	Cross-sectional area cm2	Cross-sectional moment cm4	Cross-sectional coefficient cm3	Unit mass kg/m
NS-SP-II	400	100	10.50	61.18	1240	152	48
NS-SP-III	400	125	13.00	76.42	2220	223	60
NS-SP-IIIA	400	150	13.10	74.4	2790	250	58.4
NS-SP-IV	400	170	15.50	96.99	4670	362	76.1
NS-SP-VL	500	200	24.30	133.8	7960	520	105
NS-SP-VIL	500	225	27.60	153	11400	680	120
NS-SP-IIw	600	130	10.30	78.7	2110	203	61.8
NS-SP-IIIw	600	180	13.40	103.9	5220	376	81.6
NS-SP-IVw	600	210	18.00	135.3	8630	539	106

Chemical Composition

Grade	C	Mn	Si	P	S	V	Nb	Ti	Ceq
Q295	≤0.16	≤1.50	≤0.55	≤0.040	≤0.040	≤0.15	≤0.060	≤0.20	≤0.40
Q390	≤0.20	≤1.60	≤0.55	≤0.040	≤0.040	≤0.20	≤0.060	≤0.20	≤0.44
Q420	≤0.20	≤1.70	≤0.55	≤0.040	≤0.040	≤0.20	≤0.060	≤0.20	≤0.46
SYW295	≤0.18	≤1.50	≤0.55	≤0.040	≤0.040	--	--	--	≤0.44
SYW390	≤0.18	≤1.50	≤0.55	≤0.040	≤0.040	--	--	--	≤0.46
SY295	--	--	--	≤0.040	≤0.040	--	--	--	--
SY390	--	--	--	≤0.040	≤0.040	--	--	--	--
S270GP	≤0.27	--	--	≤0.55	≤0.55	--	--	--	--
S320GP	≤0.27	≤1.70	≤0.60	≤0.55	≤0.55	--	--	--	--
S355GP	≤0.27	≤1.70	≤0.60	≤0.55	≤0.55	--	--	--	--
S390GP	≤0.27	≤1.70	≤0.60	≤0.50	≤0.50	--	--	--	--

Mechanical Property

Grade	Yield strength	Tensile strength	Elongation
SYW295	≥295	≥490	≥17
SYW390	≥390	≥540	≥15
SY295	≥295	≥490	≥17
SY390	≥390	≥540	≥
S270GP	≥270	≥410	≥24
S320GP	≥320	≥440	≥23
S355GP	≥355	≥480	≥22
S390GP	≥390	≥490	≥20

Packaging & Shipping
Detailed Photos
Company Profile
Shandong Chicago Materials Ltd. is a leading exporter of steel products. We offer a wide range of products including aluminum, steel plates, steel pipes, steel sheet piles and construction steel such as rebar, beams, rounds and flats. We mainly serve markets in Southeast Asia, the Middle East, Russia, North America and Central Asia.
We have warehouses and processing plants in several cities in China to ensure efficient and timely delivery of products to our valued customers. Our dedicated logistics department handles all aspects of transportation, ensuring the smooth operation of the entire supply chain.
We take pride in the fact that our products have comprehensive certifications that guarantee quality and reliability. Our commitment to providing quality materials at competitive prices sets us apart in the industry.
At Shandong Chicago Materials, we strive to exceed the expectations of our customers by providing superior products and quality services. We are confident in our ability to fulfill the various needs of our customers and look forward to building long-term partnerships with them.
FAQ
Q:What are the main products our company offers?
A:Our company specializes in steel export business, including aluminum, steel plates, steel pipes, steel sheet piles, and construction steel, such as rebar, steel beams, round steel, flat steel, and so on.
Q:What is the minimum order quantity for steel products?
A:Minimum order quantities for steel products may vary depending on the specific product. Please contact our sales team for more information on the minimum order quantity of the product required.
Q:Are customized steel products or sizes available?
A:Yes, we can provide customized steel products or sizes according to your specific requirements. Detailed specifications can be provided to our sales team.
Q:What are the shipping options for international orders?
A:We offer a variety of shipping options for international orders, including ocean and air freight. The choice of shipping method will depend on factors such as order quantity, destination and urgency. Our sales team will guide you in selecting the most appropriate shipping option.
Q:How long does it take to deliver steel products?
A:Delivery time is usually 5 working days for less than 500 tons and less than 10 working days for more than 500 tons.
Customized products are estimated based on order quantity, processing difficulty, etc.
Q:Do you offer quality certification for steel products?
A:Yes, we offer quality certifications for steel products, including steel mill test certificates and related product certifications. Upon request, we can provide these certifications to ensure product quality and compliance.

---
