PP Spunbonded Production Line for Non-Woven

Product Description

PP spunbonded non-woven fabric production line

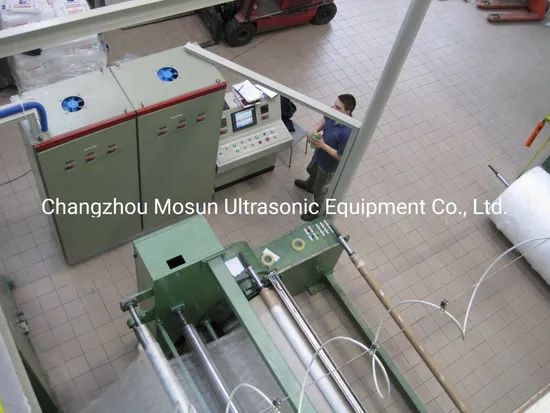

1. Machine and sample pictures:
2. General description:
PP spunbonded non-woven fabric production line directly use polypropylene as raw material into mesh by melt spinning, then makes it into fabric by strengthening with thermal bonding. It is suitable for medical sanitary material, agriculture fabric, furniture decoration and packing materials, etc.
3. Follow chart of production:
Raw material---- Melting extrusion---Filtering----Measuring---Spinning--Cooling-----stretching----Net making----Heating pressure---winding---slitting----final product
A. PP Spunbonded non-woven production line
1)The whole line is well structured and easy to operate
2)The whole line is highly automated
3)Control elements are of well-know make, high performance and reliable technologies
4)The whole line are controlled by PLC and operated with touch-screen
5)The allocation of the main frame and auxiliary equipment can be Special designed and adjusted according to customers requirement

B. Technical parameter specification
ITEM	EFFECTIVE	GSM	ANNUAL OUPUT	EMBOSSING PATTERN
S	1600mm	10-200	1500T	Diamond, oval, cross and line
S	2400mm	10-200	2400T	Diamond, oval, cross and line
S	3200mm	10-200	3000T	Diamond, oval, cross and line
SS	1600mm	10-200	2500T	Diamond, oval, cross and line
SS	2400mm	10-200	3300T	Diamond, ovial, cross and line
SS	3200mm	10-200	5000T	Diamond, ovial, cross and line

C. Service
1). Delivery:
We can assemble the line before delivery and invite you come to our factory to inspect the equipment as per your requirement if needed. When you accept the quality of the line, then we will arrange delivery.
2). Training and Installation:
When you receive the whole equipment, we will send 4-5 engineers to your factory for installation and testing. Meanwhile, we will train your workers how to operate the line and normal daily maintenance.
3). After-sales service
In the following year, if you have any problems of the production line, you can send e-mail to us to consult or invite our engineer for service at your site. We will send the professional engineers to help you to solve the problems timely.

---
