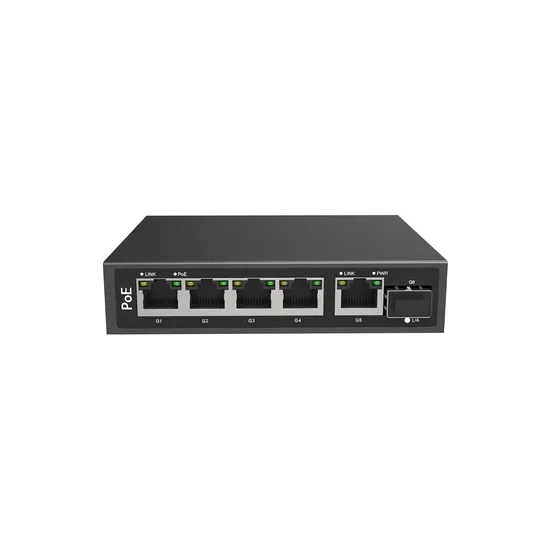

High Power 250W Total Power Supply Poe Network Switch with 4 Poe Ports RJ45 and SFP Fiber Ports

Product Description

High Power POE Network Switch with 4 POE ports Features 1. Four 10/100/1000M adaptive RJ45 ports support IEEE 802.3af/at standard PoE power supply. 2. Single port power supply up to 90W, total power supply up to 250W. 3. Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure. 4. Gigabit RJ45 ports and SFP fiber ports combination, high-speed high-bandwidth connection, to meet the networking needs of various scenarios.
Specification

Model	POE4P90
Transmission Rate	10/100/1000Mbps
Max. Power Per Port	90W; IEEE802.3af/at
Total Power	250W
Fixed Port	1*1000M uplink SFP port(Data) 1*10/100/1000M RJ45 port (Data) 4*10/100/1000M bt PoE ports (Data /Power)
Ethernet Port	10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption
Network Protocol	IEEE802.3 10BASE-T,IEEE802.3i 10Base-T,IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T,IEEE802.3z 1000Base-X,IEEE802.3x
Switching Capacity	12Gbps(Non-blocking)
Power Supply	External power adapter AC100~240V 50-60Hz
Network Standard	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
Dimension(L*W*H)	118*95*28mm
Net Weight	0.35kg
