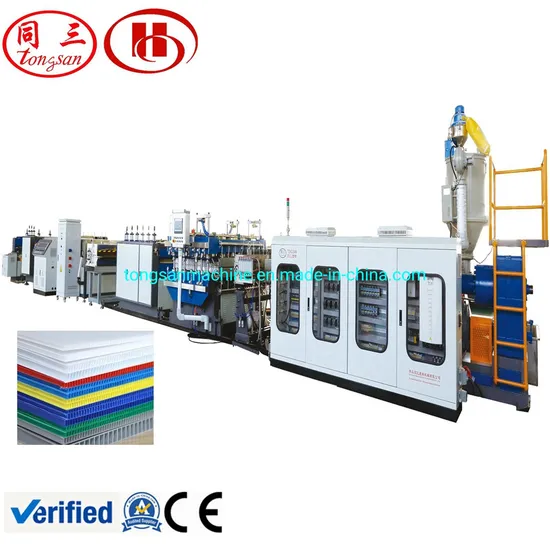

Professional Manufacturer PP Hollow Sheet Machine/PP Plastic Corrugated Sheet Corrugated Box Making Machine

Product Description

Professional Manufacturer PP Hollow Sheet Machine
PP Plastic Corrugated sheet Corrugated box making machine
Turn-key project plastic turnover box,pass box production line
PP hollow grid corrugated sheet making machine can produce the sheet with the width of 1000-2800mm.We can provide all auxiliary machine for plastic pp hollow sheet to make box,suas as the edge sealing machine,die cutting machine,printing machine,welding machine etc.PP hollow grid corrugated sheet is widely used in fields of machine,electron,appliance,food,advertising,interior decoration material,glass,agricultural product ext packing and transporting.
The technical data of PP hollow grid corrugated sheet making machine

Model	Sheet width	Sheet thickness	Extruder model	Motor power
TSGZB-1400	1250mm	2-6,8-12mm	100/36	55-75kw
TSGZB-1860	1700mm	2-6,8-12mm	120/36	75-90kw
TSGZB-2300	2150mm	2-6,8-12mm	120/36	90-110kw
TSGZB-2600	2450mm	2-6,8-12mm	120/36	90-110kw
TSGZB-3000	2800mm	2-6,8-12mm	150/36	132kw
TSGZB-2600(F)	2450mm	2-6,8-12mm	120/36&80/36	110+37kw

Main parts of PP hollow grid corrugated sheet making machine Single Screw Extruder
The specially designed screw and the advanced controlling system ensure excellent plasticization,high output and stable extruding.We also have the co-extrusion type to use the recycled plastic to reduce the cost with high quality products.
High quality mould
Material:high quality alloy steel
Equipped with :Screen changer ,Melting pump ,Accuracy control device
Size can be customized by requirement Calibrating table/Sizing platform
Pneumatic lift control
Vacuum system composes two independent subsystems and each is equipped with several fixed circulating vacuum lines of three-point type.
Haul-off device
There are 2 sets of haul-off device in the line.
Adopt the Nitrile rubber roller. Heating Oven
Material:304 sainless steel
separately temperature control system Cooling bracket
Place in the middle of between oven and second haul-off device. Automatic cutter
For side cutting and length cutting
The waste scrap can be recycled.
Corona treatment device
Remove the stress of plate and further improve planeness of the plate.
The PP hollow grid corrugated sheet is eco-friendly new material in the market.
The PP hollow grid corrugated sheet has the advantage of non-toxic, no smell, pollution-free, anti - moisture, corrosion resistance, light quality, tough - resisting, thermal shock proof, economy and durability, rich colors etc, It possesses other advantages, like folding resistance, stretching resistance, strong bearing force.
The PP hollow grid corrugated sheet is widely used in machinery, electron, appliance, food, advertising, Interior decoration material, glass, agricultural product etc packing and transporting.
The PP hollow grid corrugated sheett container is new packing material in the market, it can be ordered and manufactured by market requirement with different size and form, the container has been used in replacing the paper box and calcium plastic.
The paper industry causes environment pollution and the production cost is going up, by contrast ,the plastic hollow plate production process is non-toxic, non-pollution and one-step forming.
With the developing of e-commerce, the container is used largely more and more, the logistics industry proposes high demand for the packing materials which are easier to use and transport, require simply technology and can be finished in short time.
Our Service: One year warranty, Lifelong Free Follow-up Services
1, we will provide all the machines for the complete production according to customer's requirements.
2, we will provide complete service for factory layout and other informations to help customer to build the factory.
3, we can also provide the raw material to the customer if you need.
4, we will provide good service for machine installation and trainning, until the customers can run the machines and make stably production.
5, Except one year quality guarantee,we will provide after-sell service for all the life.
6, for long-term cooperation, we always provide good quality, good price and good service to customer. we are the professional and trustable supplier for turnkey projects. let us do win-win business together.
Now we have ready made PP hollow grid corrugated sheet making machine in the factory,we sincerely invite you visit our factory.
We can run the machine for your checking.

---
